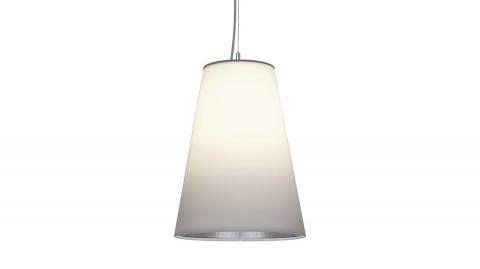

Kiora™

WEB PIN™283

General Specification

Outer diffuser: Injection moulded clear acrylic with an etched lower band.

Internal diffuser: Injection moulded opal acrylic.

Suspension: Single stainless steel cable.

Power cable: Silver braided.

Canopy finish: White powder coated paint.

Reflector: Aluminum, frosted finish with vertical facets.

Drivers: HPF electronic, 120/277V (EU-240V). 0-10V, 1% dimming standard.

Emergency systems:

Integral: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Integral emergency luminaires have a 50mm/2" extended ballast housing. Not available with a 347V supply.

Remote: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Mechanical: Mounts directly to a junction box (by others). Mounting hardware (by others - North America only).

L70 @25oC (77oF): > 50,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI) for White LEDs only.

See Approvals
Interior - Suspended Direct & Indirect

specify luminaire

Code: Power (LED): Delivered lms: LPW: Weight:
44 1201 30W 2290 76 8kg.17.6lb

Specify CCT

Specify Dimming

Specify Options
