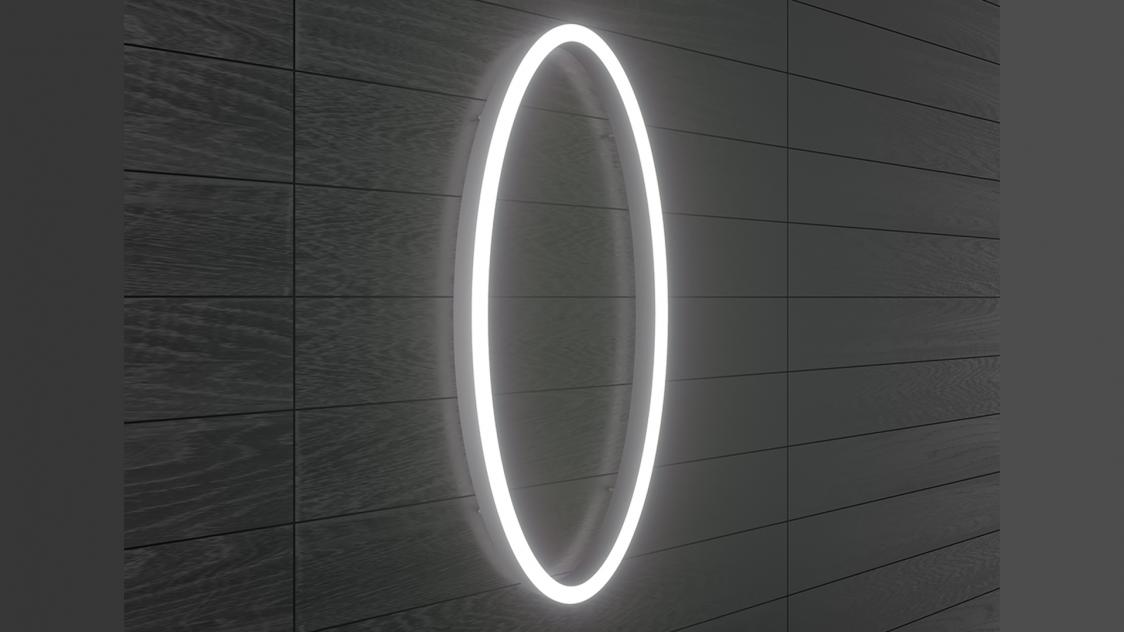

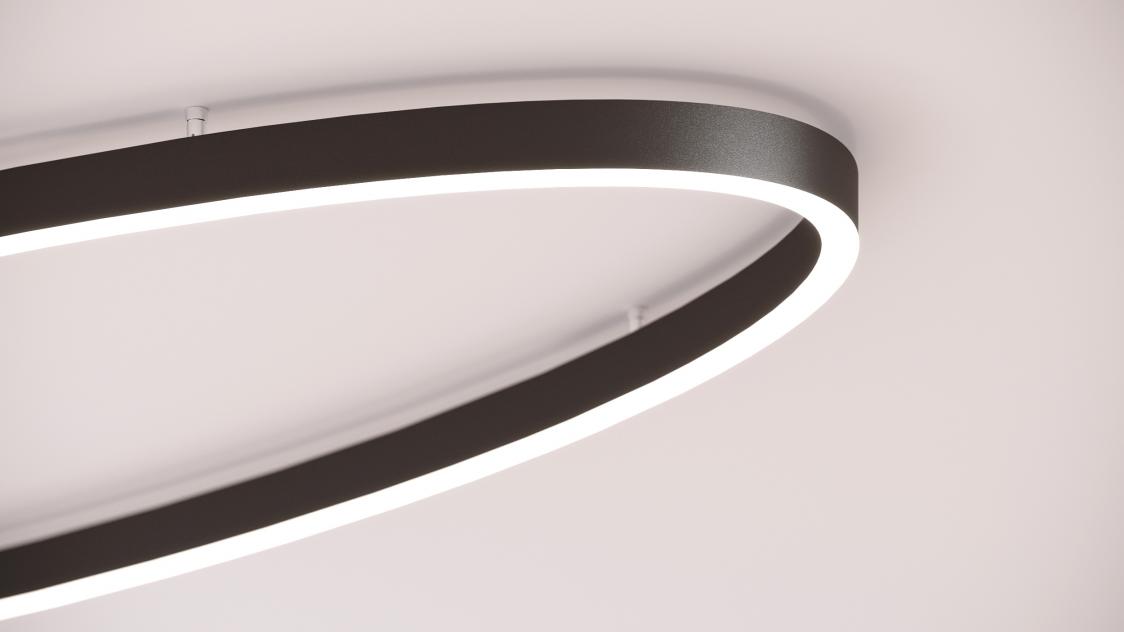

Micro Ellipse II™ Wall or Ceiling Surface

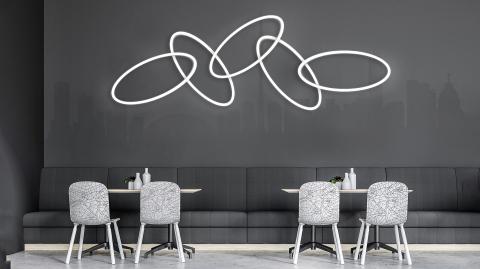

No shape is more graceful than the ellipse. With a super-slim 1” profile and lengths ranging from 3’ to 6’, MICRO ELLIPSE II is ideal for creating a lasting impression. Embellish a wall using multiple luminaires combined with a halo effect of indirect lighting.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body and trim

Aluminium.

Finish

Powder coated.

Diffuser

Protruding Lens 0.08: (2.1mm).

Sensors

Consult factory regarding sensor compatibility.

Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Drivers

Remote, HPF electronic drivers for 120-277V (EU-240V). Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation.

PoE

Micro Ellipse II can integrate into your data network via Power over Ethernet (PoE) connectivity.

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

Reported L70 @25°C (77°F)

> 60,000 hrs.

Approvals

Damp Rated.

Approvals

  • ADA
  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Ceiling Direct Ceiling Direct
Icon for Wall Direct Wall Direct
Icon for General Diffuse General Diffuse
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

Luminaire

Lumens

CRI

CCT

Voltage

Dimming (Remote)

Fixture Finish

Emergency

Product Family

Beta-Calco envisions a world where beauty is a baseline standard for the built environment. We drive towards more dynamic and impressive solutions with robust product development.

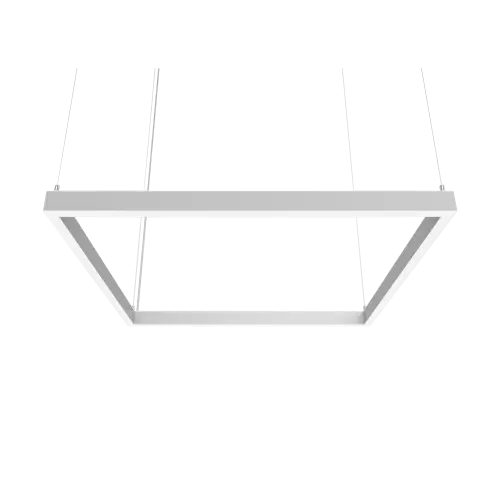

Micro SQ II™ Suspended

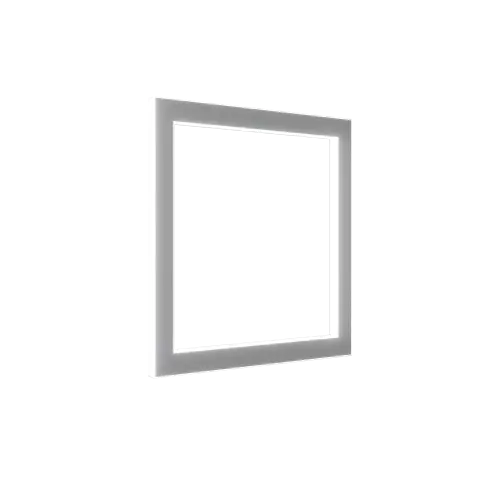

Micro SQ II™ Wall Or Ceiling Surface
