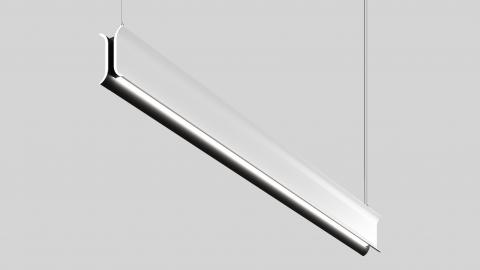

Micro Flare™ Continuous

MICRO FLARE is about elegance and allure. Two splayed panels reveal an inner trim that creates the perception of a duplex material. The regressed end cap adds a fourth dimension to the seriffed profile and draws out the inner finish as a color accent . MICRO FLARE is perfect for interiors that call for textures and duotones. With a UGR <19, the LEDs are perfectly pitched to optimize light performance and visual light diffusion so that the inner trim is accentuated, not washed out. MICRO FLARE is a stylish expression of the performance light concept suitable for projects where aesthetics and function go hand in hand.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V). The driver is integral to the fixture housing.

Mechanical

Luminaires mount directly over J box (by others).

Diffuser

Opal acrylic.

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Reported L70 @25°C (77°F)

> 60,000 hrs @ 1800 lumens/ft (5900 lumens/m)

Estimated L70 @25°C (77°F)
> 165,000 hrs @ 1800 lumens/ft (5900 lumens/m)

Sensors

Compatible with Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, Philips, and others. Consult factory.

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 90+

Approvals

Damp Rated.

Designed by

Serge Cornelissen.

Design

US Design Patent Pending.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct DD3 Direct DD3
Icon for Indirect UD1 Indirect UD1
Icon for Indirect UD3 Indirect UD3
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

CR90 / DD3

Luminaire

Length of Run

Max Length Per Section

Lm/ft (Direct)

Lm/ft (Indirect)

CRI

CCT

Direct Diffuser

Uplight Diffuser

Uplight Blackout Plate

Voltage

Dimming

Ceiling Type

Suspension

Fixture Finish

Inside Trim Finish

Canopy Finish

Emergency

Circuits

Sensors

Product Family

Beta-Calco envisions a world where beauty is a baseline standard for the built environment. We drive towards more dynamic and impressive solutions with robust product development.
