Micro Quad II™ Surface

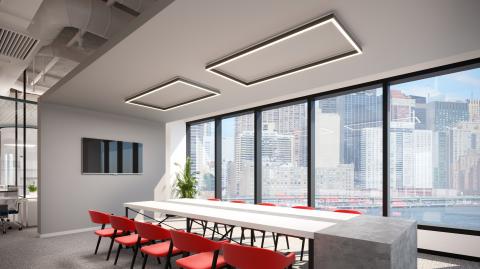

The straight lines and right angles of the rectangle add a balanced and grounded feel to a space. With a super-slim 1” profile and several quadrilaterals ranging from 2’ to 7’ squared, MICRO QUAD II is ideal for creating and complementing grid effects on the ceiling, or as part of a wall design that can frame decorative features with light. The light emission is direct/indirect and can be coordinated with MICRO QUAD DE which emits light from the inner and outer sides of the frame. The indirect light creates a halo effect that adds to the illumination of the immediate area. For a whimsical style, combine MICRO QUAD with MICRO RING or MICRO TRIANGLE.

DOWNLOAD SPEC SHEET

Tech Specs

Body

Aluminium.

Finish

Powder coated.

PoE

Micro Quad II can integrate into your data network via Power over Ethernet (PoE) connectivity.

Diffusers

Frosted acrylic. Lens protrudes 4.8mm/0.19".

Drivers

Remote, HPF electronic drivers for 120-277V (EU-240V). Wire size 18 AWG - max distance (from fixture to drivers)40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

CRI

Fixture supplied at 80 CRI, 90 CRI available upon request.

Sensors

Consult factory regarding sensor compatibility.

Reported L70 @25°C (77°F)

> 60,000 hrs.

Approvals

Damp Rated.

Approvals

  • ADA
  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Ceiling Direct/Indirect Ceiling Direct/Indirect
Icon for Ceiling Direct Ceiling Direct
Icon for Wall Direct/Indirect Wall Direct/Indirect
Icon for Wall Direct Wall Direct
Icon for Direct Direct
Icon for Direct-indirect Direct-indirect
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

Dimming

D4 & D5 not available with 983750 or 983760.
DA45 must be used with EV only.

Lumen & Wattage Reduction (Direct Illumination Only)

PR1 is not available with 983610.  Lumen reduction available for direct light only.  Custom reduction percentages available upon request.

Optional Low Voltage
