Puzzle™ Ceiling

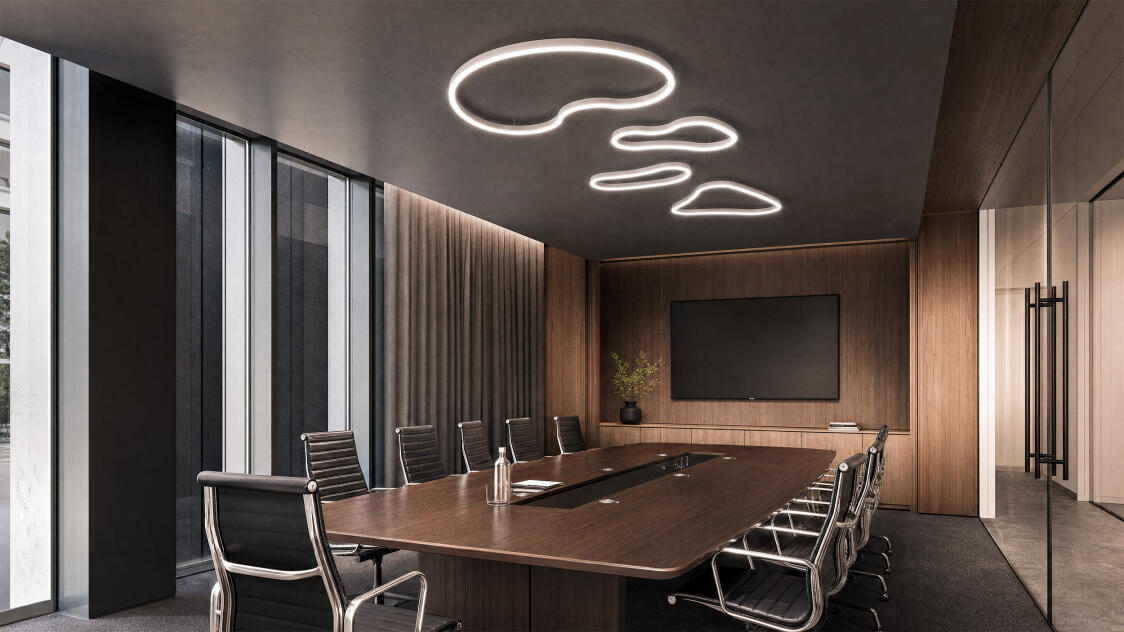

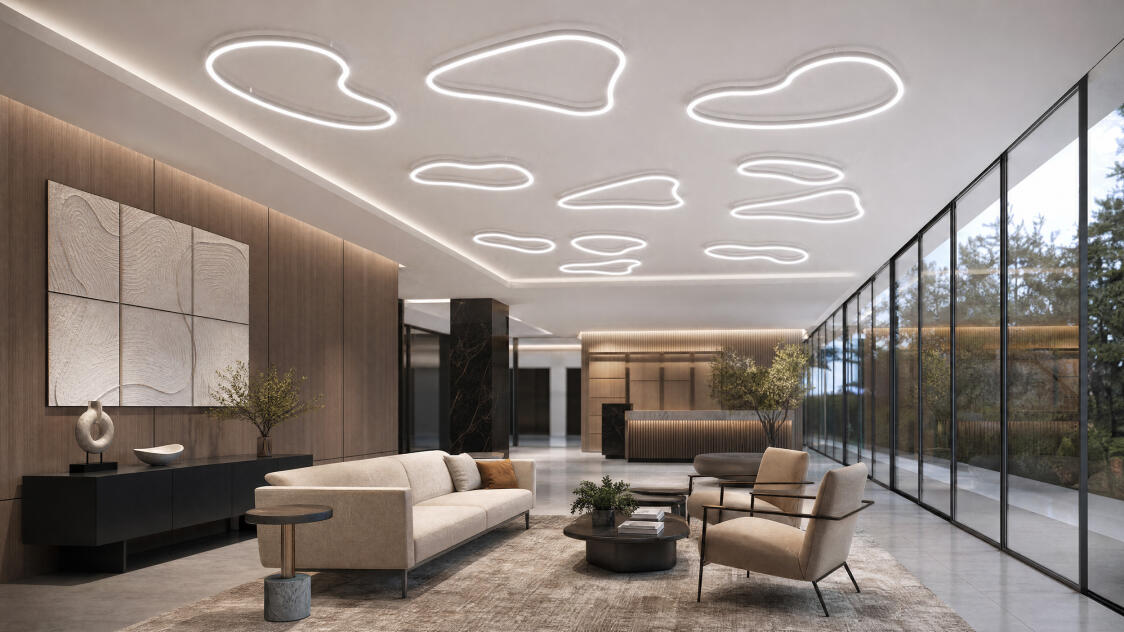

Buoyant and cheerful, PUZZLE is a collection of curvilinear surface lights consisting of 5 organic shapes each with 3 sizes. What these shapes are is an enigma left open to the individual’s imagination and designed for creating remarkable combinations on the wall or ceiling that complement a variety of design themes.

DOWNLOAD SPEC SHEET

Tech Specs

Body and trim

Steel and aluminium.

Finish

Powder coated.

Diffuser

Protruding Lens (2.1mm/0.08").

Sensors

Consult factory regarding sensor compatibility.

Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Remote Mounting Of Drivers

Wire Size 18 AWG - Max distance (from fixture to drivers) 40', Wire size 16 AWG - Max distance 60', Wire size 14 AWG - Max distance 90. Drivers must be accessible after installation.

Drivers

HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming. Drivers are mounted remotely.

Mechanical

Luminaires mount directly over J box (by others - North America only).

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

Reported L70 @25°C (77°F)

> 50,000 hrs.

Approvals

Damp Rated.

Patent No.

D827909, D827187, D827908, D828611, D827907.

Approvals

  • ADA
  • ETL
  • CE
  • Grounding
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Ceiling Direct Ceiling Direct
Icon for Wall Direct Wall Direct
Icon for Direct Direct
Icon for Declare Declare
