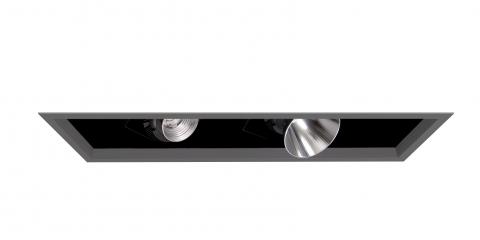

Rail-Lite™ Bezel trim (Non-Continuous)

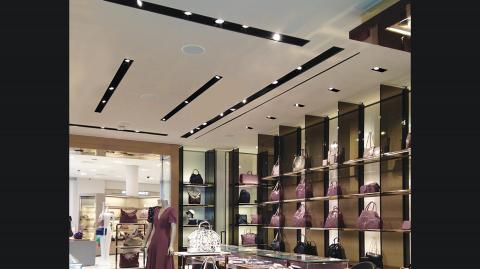

The multiple spot system blends into architecture and conceals the light sources for a discreet look. RAIL-LITE is ideal as a retail solution with ultimate beam control and high color rendering. The spots can be adjusted laterally within the channel to target more accurately and the angling of the beam adjusts in 5° increments up to 45°. A CRI of 90 displays the true color of objects making merchandise more distinguishable.

DOWNLOAD SPEC SHEET

Tech Specs

Housing

Steel and aluminum, black finish internal and external.

Angling

0° to 45° in 5° intervals.

Rotating

360° limit.

LED Heat sink

Extruded aluminum.

Reflectors

Narrow, medium and wide beam, highly reflective, specular finish, vacuum plated. Twist’N’Lock reflectors for on-site switching.

Drivers

Constant Current driver for 120-277V (EU-240V). Drivers can be replaced from below. The driver is integral to the fixture housing.

Bezel trim version

Extruded aluminum. For installation into ceilings with a thickness range of 1/2" to 3/4" (12mm-19mm).

Sliding

Individual heads can slide a maximum of 2'/610mm left or right of its centre point.

PoE

Rail-Lite can integrate into your data network via Power over Ethernet (PoE) connectivity.

Electrical

Integral junction box for branch circuit through wiring.

LEDs

High power, LEDs can be replaced from below.

Delivered Lumens

Delivered lumens & LPW based on 3000K (min 80 CRI).

Sensors

Consult factory regarding sensor compatibility.

Reported L70 @25°C (77°F)

> 60,000 hrs.

Approvals

Damp Rated.

Notes

Photometric testing performed using LM79 procedures.
For all other reflectors types please consult photometric files.
Due to constant change in LEDs, please check our website for current product specifications.

Rail-Lite™ | Patent Pending (United States, Canada and European Patent Convention)

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • IP 20

Mounting & Optics

Icon for Recessed Recessed
Icon for Bridgelux-14° Bridgelux-14°
Icon for Bridgelux-22° Bridgelux-22°
Icon for Bridgelux-28° Bridgelux-28°
Icon for Bridgelux-38° Bridgelux-38°
Icon for Bridgelux-47° Bridgelux-47°
Icon for Xicato-13° Xicato-13°
Icon for Xicato-18° Xicato-18°
Icon for Xicato-28° Xicato-28°
Icon for Xicato-41° Xicato-41°
Icon for Declare Declare
