Rail-Lite™
Continuous run trimless

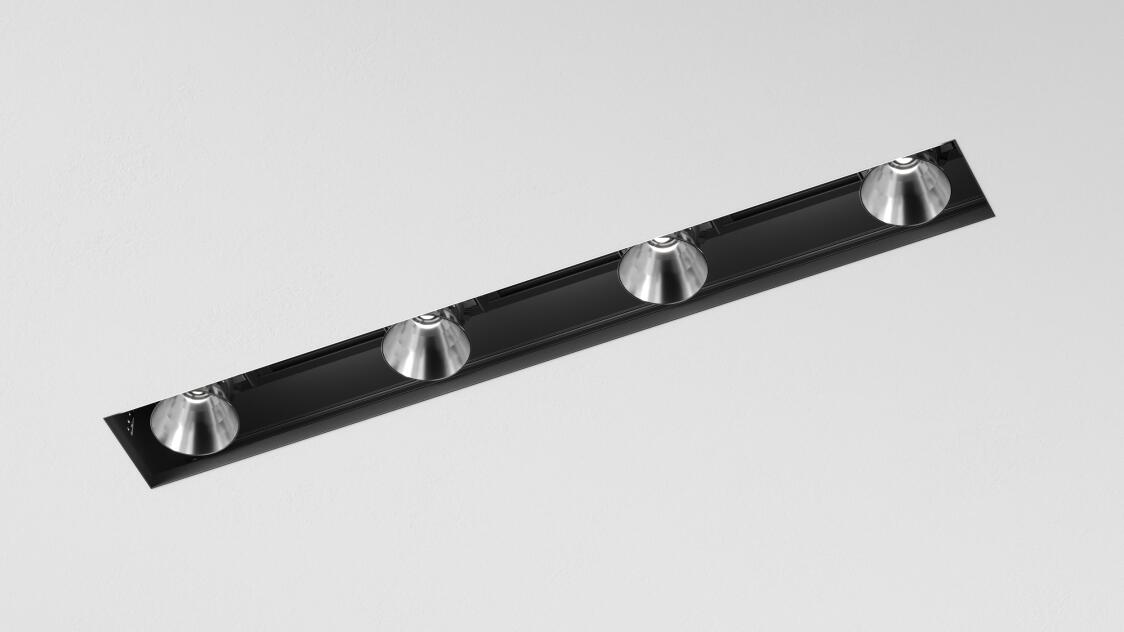

The trimless channel system blends into architecture and conceals the light sources for a seamless look. RAIL-LITE sections connect solely mechanically and can run distances as required for the space with L, T, and X connections to feed light where it is needed. RAIL-LITE is ideal as a retail solution with ultimate beam control and high color rendering. The spots can be adjusted laterally within the channel to target more accurately and the angling of the beam adjusts in 5° increments up to 45°. A CRI of 90 displays the true color of objects making merchandise more distinguishable.

Features

Housing

Steel and aluminum, black finish internal and external.

Sliding

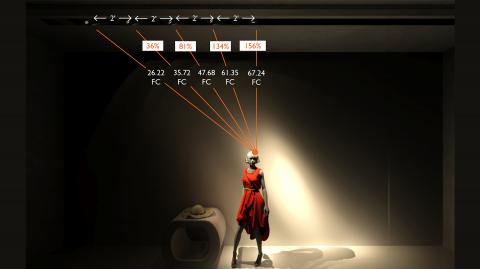

Individual heads can slide a maximum of 2/610mm left or right of its centre point.

Angling

0° to 45° in 5° intervals.

Rotating

360° limit.

Trimless version

For installation into drywall (plasterboard) ceilings with a thickness range of 1/2" to 3/4" (12mm-19mm). Trimless flange supplied in raw aluminum.

Reflectors

Narrow, medium and wide beam, highly reflective, specular finish, vacuum plated. Twist’N’Lock reflectors for on-site switching.

Electrical

Integral junction box for branch circuit through wiring.

LED Heat sink

Extruded aluminum.

LEDs

High power, LEDs can be replaced from below.

Drivers

Constant Current driver for 120-277V (EU-240V). Drivers can be replaced from below. The driver is integral to the fixture housing.

PoE

Rail-Lite can integrate into your data network via Power over Ethernet (PoE) connectivity.

Approvals

Damp Rated.

Note

Continuous runs connect mechanically but do not connect electrically.  Each module requires a power supply. Power can be daisy chained from one module to another. LED heads slide as far as the inside corner of Corner, T Junction and X Junction accessories.

Rail-Lite™ | Patent Pending (United States, Canada and European Patent Convention)

Links

https://www.bridgelux.com/products/v-series#specifications
https://www.xicato.com/products/light-sources/xtm/

Delivered Lumens

Delivered lumens & LPW based on 3000K (min 80 CRI).

L70 @25°C (77°F)

> 60,000 hrs.

Mounting and Optics

Icon for Recessed Recessed
Icon for Bridgelux-14° Bridgelux-14°
Icon for Bridgelux-22° Bridgelux-22°
Icon for Bridgelux-28° Bridgelux-28°
Icon for Bridgelux-38° Bridgelux-38°
Icon for Bridgelux-47° Bridgelux-47°
Icon for Xicato-13° Xicato-13°
Icon for Xicato-18° Xicato-18°
Icon for Xicato-28° Xicato-28°
Icon for Xicato-41° Xicato-41°
Icon for Declare Declare

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • IP 20

Share this fixture

Configurator

You selected

T Junction - Width (439mm/17.3"), Length (419mm/16.5")

Optional Low Voltage
