Rail-Lite™
Trimless (Non-Continuous)

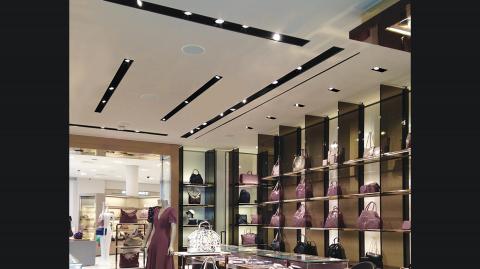

The trimless multiple spot system blends into architecture and conceals the light sources for a discreet look. RAIL-LITE is ideal as a retail solution with ultimate beam control and high color rendering. The spots can be adjusted laterally within the channel to target more accurately and the angling of the beam adjusts in 5° increments up to 45°. A CRI of 90 displays the true color of objects making merchandise more distinguishable.

Features

Housing

Steel and aluminum, black finish internal and external.

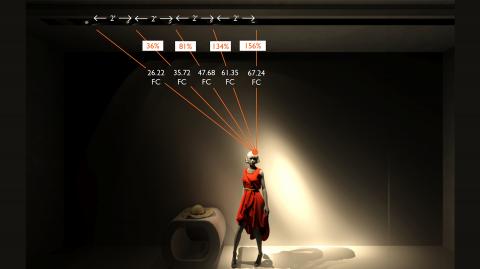

Sliding

Individual heads can slide a maximum of 2/610mm left or right of its centre point.

Angling

0° to 45° in 5° intervals.

Rotating

360° limit.

Trimless version

For installation into drywall (plasterboard) ceilings with a thickness range of 1/2" to 3/4" (12mm-19mm). Trimless flange supplied in raw aluminum.

Reflectors

Narrow, medium and wide beam, highly reflective, specular finish, vacuum plated. Twist’N’Lock reflectors for on-site switching.

Electrical

Integral junction box for branch circuit through wiring.

LED Heat sink

Extruded aluminum.

Drivers

Constant Current driver for 120-277V (EU-240V). Drivers can be replaced from below. The driver is integral to the fixture housing.

PoE

Rail-Lite can integrate into your data network via Power over Ethernet (PoE) connectivity.

LEDs

High power, LEDs can be replaced from below.

L70 @25°C (77°F)

> 60,000 hrs.

Notes

Photometric testing performed using LM79 procedures.
For all other reflectors types please consult photometric files.
Due to constant change in LEDs, please check our website for current product specifications.

Rail-Lite™ | Patent Pending (United States, Canada and European Patent Convention)

Links

https://www.bridgelux.com/products/v-series#specifications
https://www.xicato.com/products/light-sources/xtm/

Delivered Lumens

Delivered lumens & LPW based on 3000K (min 80 CRI).

Approvals

Damp Rated.

Mounting and Optics

Icon for Recessed Recessed
Icon for Bridgelux-14° Bridgelux-14°
Icon for Bridgelux-22° Bridgelux-22°
Icon for Bridgelux-28° Bridgelux-28°
Icon for Bridgelux-38° Bridgelux-38°
Icon for Bridgelux-47° Bridgelux-47°
Icon for Xicato-13° Xicato-13°
Icon for Xicato-18° Xicato-18°
Icon for Xicato-28° Xicato-28°
Icon for Xicato-41° Xicato-41°
Icon for Declare Declare

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • IP 20
