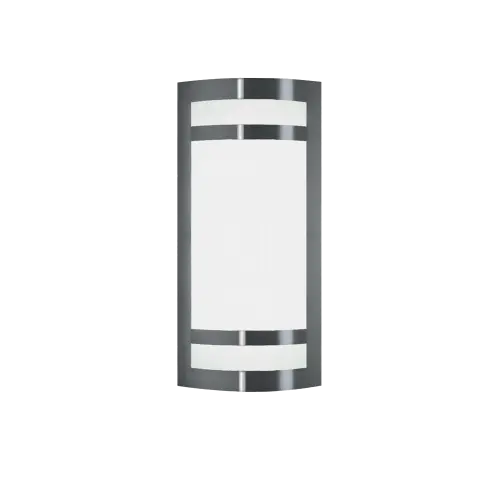

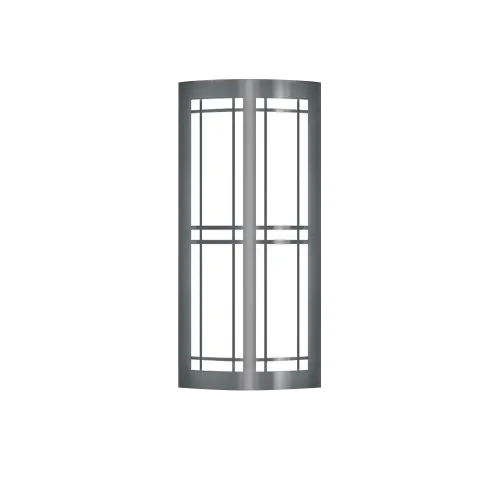

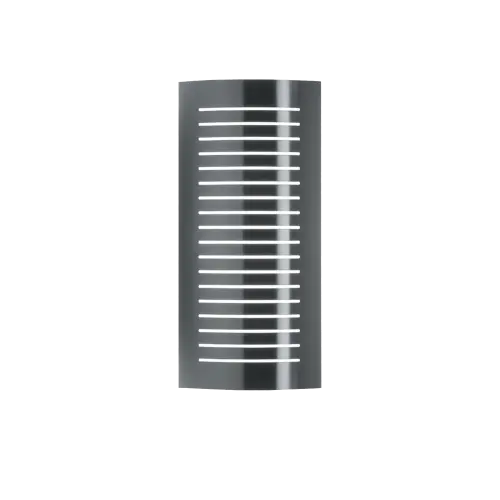

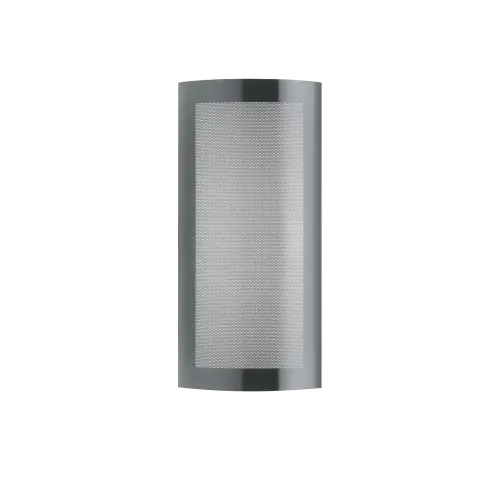

SENTINEL stands ready and secures the way, delivering a powerful omnidirectional light reinforced with optional uplight and downlight in either narrow or wide beam angles. Available in 3 fascia's, Sentinel, Sentinel II or Sentinel III.
Tech Specs
Housing
Die-cast and extruded (low copper) aluminium. Front housing hinges open for access and secures via a bolt hidden behind a spring loaded flap.
Finish
Exterior grade, metallic powder coated paint.
Gaskets
One piece silicone.
Reflector
Aluminium, white powder coated.
Drivers
HPF electronic, 120-277V, 347V (EU-240V), Dimming for Direct Light Only. Up/Down light non-dimming.
Mechanical
Mounts directly over a standard electrical junction box (by others - North America only).
Diffuser
UV stabilised polycarbonate.
Minimum Starting Temperature
-20°C.
Remote Emergency
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15’ (4.5m). Test switch fits a single gang box (not supplied).
Delivered Lumens
Delivered lumens & LPW based on 3000K (min 80 CRI).
Approvals
IP65, Wet Location.
Approvals
Mounting & Optics
Ext-Wall
