Soft Sq™

General Specification

Product Overview:

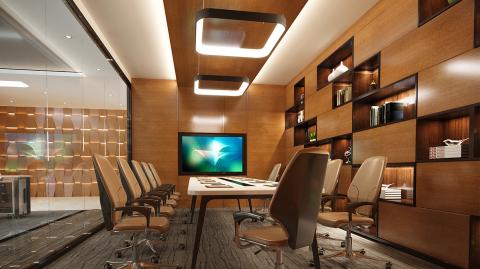

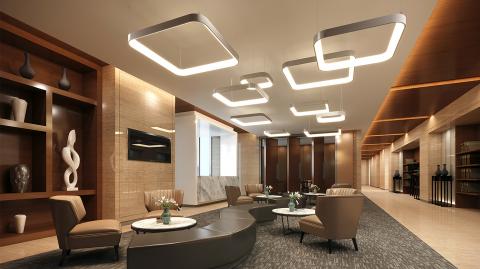

The optically engineered diffuser throws the light downwards exactly where it is required, whilst creating a subtle indirect glow on the ceiling. Ideally suited for atriums, lobbies, boardrooms and reception areas.

Body: Aluminum and steel.

Diffuser: Opal acrylic.

Drivers: HPF electronic for 120-277V (EU-240V)

PoE:  Soft Sq can integrate into your data network via Power over Ethernet (PoE) connectivity.

Remote mounting of drivers: Wire Size (max distance from canopy to drivers) 18 AWG - 9.5' (2.9m), 16 AWG - 19.5' (5.9m), 14 AWG - 29.5' (9m). Drivers must be accessible after installation.

Remote emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 25' (7.6m). Test switch fits a single gang box (not supplied).

L70 @25°C: > 50,000 hrs.

Delivered lumens: Delivered lumens & LPW based on 4000K, CRI 80+

Approvals: Damp Location (Indoor use only).





See Approvals
Suspended Direct/Indirect Direct-indirect PoE

Specify Luminaire

Luminaire
Code Square (A) Max Wattage Down/Up Ratio Max Delivered lms Max LPW
22" 53W 80/20 4500 90
36" 96W 80/20 8100 89
48" 127W 80/20 10800 90

Specify Lumens

Lumens
2300
4000
4500
5400
8100
10800

Specify CRI

Specify CCT

CCT
3000K
3500K
4000K

Specify Voltage

Voltage
120/277V
240V ¹
347V ²
Low Voltage ³

Specify Dimming (Remote only)

Dimming
0-10V Dimming 1.0%
0-10V Dimming 0.1%
DALI Dimming 0.1%
DALI Dimming 1.0%
DSI/switchDim ¹
PoE ²

Specify Suspension

Specify Fixture Finish

Finish - Fixture
White
Black Metallic - Textured
Silver Metallic - Textured
Gold Metallic
Wood grain - Light Cherry ¹
Wood grain - Dark Walnut ¹
Midnight Blue Metallic - Textured
Copper Metallic
Charcoal Metallic - Textured
Bronze Metallic - Textured
Champagne Metallic
Red Metallic - Textured

Specify Canopy Finish

Finish - Canopy
White
Black Metallic - Textured
Silver Metallic - Textured
Gold Metallic
Midnight Blue Metallic - Textured
Copper Metallic
Charcoal Metallic - Textured
Bronze Metallic - Textured
Champagne Metallic
Red Metallic - Textured

Specify Emergency

Emergency
Not required
Emergency system - Remote

You selected

pcs
CR80 / SS2 / E0
