Spective™ Suspended

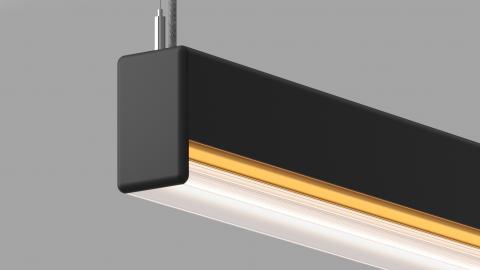

SPECTIVE, a seamless fusion of timeless design and cutting-edge technology. Meticulously designed to emulate the iconic shape of fluorescent tubes, SPECTIVE boasts a striking light strip that runs down the center of its diffuser. The diffuser of SPECTIVE takes the form of a rail and features an anodized trim in black, gold or silver that appears to draw a graphical line along its profile. The lens texture and shape produce a distinct visual impact, evocative of multiple wave patterns. Completing the visual ensemble are the flawlessly rounded end caps, which embody the SPECTIVE design ethos, yielding a versatile and appealing profile from every angle.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

Drivers

HPF electronic drivers for 120-277V, 347V (EU-240V). The driver is integral to the fixture housing.

Mechanical

Luminaires mount directly over J box (by others).

Diffuser

Opal acrylic.

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Sensors

Compatible with Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, Philips, and others. Consult factory.

Reported L70 @25°C (77°F)

> 60,000 hrs @ 2000 lumens/ft (6000 lumens/m)



Estimated L70 @25°C (77°F)

> 165,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Tunable White

Tunable white available, consult factory.

Approvals

Damp Rated.

Designed by

Serge Cornelissen.

Design

US  Design Patent Pending.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct Direct
Icon for Indirect UD1 Indirect UD1
Icon for Indirect UD3 Indirect UD3
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

CR90 / DD3

Luminaire

Length of Run

Fixture Length

Lumens/Ft Direct

Lumens/Ft Indirect

CRI

CCT

Direct Diffuser

Uplight Diffuser

Uplight Blackout Plate

Voltage

Dimming

Ceiling Type

Suspension

Fixture Finish

Inside Trim Finish

Canopy Finish

Emergency

Circuits

Sensors

Product Family
