Tower™
Product Overview

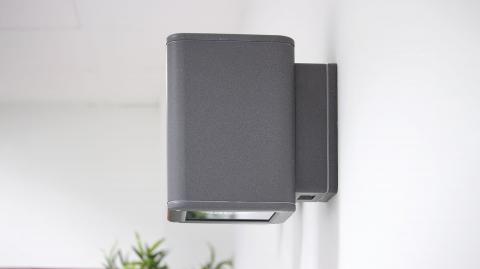

TOWER is a facade light designed with a robust aesthetic and engineered with exceptional power in both light output and optical control. 6 beam options are available ranging from 10° to 71°, for either direct or indirect light emission. An internal reflector ensures efficient light distribution allowing TOWER to be mounted at higher elevations for wayfinding or to accent facade features.

Features

Body and trim

Low copper die-cast aluminum, highly resistant to oxidation.

Diffuser

3mm/0.12" tempered glass/convex lens.

Gasket

Silicone.

Finish

Powder coated.

External screws

A4 stainless steel treated with highly antioxidant water-repellent lubricating solution to ensure easy opening.

Cable entry

M16 double gland for DIA 5-10mm/0.2-0.4" cables.

Drivers

HPF, electronic 120/277V (EU-240V), 0-10V dimming.

Mechanical

Mounts directly over a Jbox (Mini Tower mounts over a 2"x4" Jbox).

Delivered Lumens

Delivered lumens & LPW based on 3000K (min 80 CRI).

Mounting and Optics

Icon for Ext-Wall Downlight Ext-Wall Downlight
Icon for Ext-Wall Up/Down Ext-Wall Up/Down
Icon for Ext-Wall Uplight Ext-Wall Uplight
Icon for 10° 10°
Icon for 14° 14°
Icon for 22° 22°
Icon for 28° 28°
Icon for 35° 35°
Icon for 71° 71°

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Mounting Suited On Flammable Surfaces
  • IP 65
  • Wet Location
