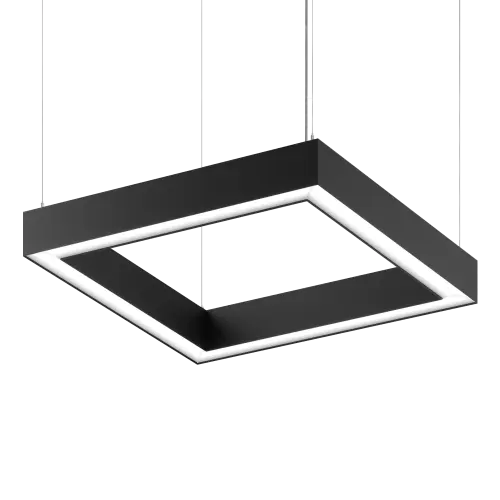

Tunnel Quad™ Suspended

TUNNEL revives the classic functional form into a charming new style with an incurved enhancement. With this design flair comes great functionality. TUNNEL exceeds the typical levels of output and efficacy, and delivers on specification capabilities. Alternatives are provided for nearly every component, allowing designers to configure a luminaire designed precisely to the needs of the space. TUNNEL’s luxurious finishes and smooth lines create a stylish luminaire that doesn’t compromise on performance.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

BIOS

For circadian lighting, consult factory.

Tunable White

Tunable white available, consult factory.

RGBW

RGBW available, consult factory.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V). The driver is integral to the fixture housing.

Diffuser

Opal acrylic. 2.4" width

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Mechanical

Luminaires mount directly over J box (by others).

Reported L70 @25°C (77°F)

> 60,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Estimated L70 @25°C (77°F)

> 165,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Sensors

Compatible with Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, Philips, and others. Consult factory.

Approvals

Damp Rated.



Design

US Design Patent Pending.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct DD2 Direct DD2
Icon for Direct DD3 Direct DD3
Icon for Indirect Indirect
Icon for Bios Bios
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

Luminaire

Lumens/ft (Direct)

Lumens/ft (Indirect)

CRI

CCT Direct

CCT Indirect

Direct Diffuser

Indirect Diffuser (Batwing)

Uplight Blackout Plate

Voltage

Dimming

Ceiling Type

Suspension

Fixture Finish

Canopy Finish

Emergency

Circuits

Sensors

Product Family

Beta-Calco envisions a world where beauty is a baseline standard for the built environment. We drive towards more dynamic and impressive solutions with robust product development.
Tunnel™ Continuous
Tunnel™ Continuous Recessed
Tunnel™ Ceiling
Tunnel Quad™ Suspended
Tunnel Systems™ Suspended
Tunnel™ Continuous Wall
