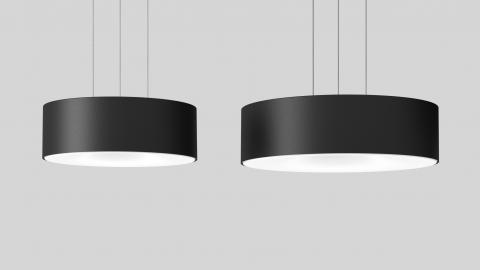

Warp™ Suspended
Our revolutionary triple circuit luminaire delivers high efficiency diffused, spot and indirect light, allowing you to transition from general ambient to mood lighting. Available in two sizes 18" (457mm) & 24" (610mm), the WARP family offers two styles of pendant plus a ceiling mounted version. The color temperature of each light source can be individually selected to deliver an effect best suited to the application. New to the WARP are a wide array of contemporary decorative colors to accent your architectural scene.
Tech Specs
Body
Canopy finish
Powder coated.
Suspension
Power over Suspension. Standard power options available, consult factory.
Diffuser
Acrylic.
Remote emergency
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).
Drivers
HPF electronic drivers for 120-277V, 347V, (EU-240V). The driver is integral to the fixture housing.
Mechanical
Luminaires mount directly to a J box (by others - North America only).
Delivered lumens
Delivered lumens & LPW based on 4000K (min 80 CRI).
Sensors
Consult factory regarding sensor compatibility.
L70 @25°C
> 50,000 hrs.
Approvals
Damp Rated.
Design
US Pat. No. D893,083.
Designed by
Serge Cornelissen.
Approvals
Mounting & Optics
Suspended Direct
Suspended Direct/Indirect
Direct
Direct-Indirect
Spot Only 40°
Declare
