Xacara L™

Direct

WEB PIN™165

General Specification

Body: Die cast aluminum and steel.

Finish: Powder coated.

Suspension: Three or four stainless steel aircraft cables.

Power cable: Silver braided.

Reflectors: Aluminum, specular finish with vertical facets.

Decorative disc (optional): 6mm/0.25" green tint acrylic (faux glass) with a polished edge and a etched face.

Drivers: 120/277V (EU-240V) electronic with 0-10V dimming (10%).

Emergency systems:

Integral: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Integral emergency luminaires have a 50mm/2" extended ballast housing. Not available with a 347V supply.

Remote: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

L70@25°C: > 60,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).

Approvals: Damp Location (Indoor use only).

Note: Photometric testing performed using LM79 procedures.
See Approvals
Suspended Direct Suspended Direct Direct Direct

Specify Luminaire

Code Power Delivered lms LPW Weight
95W (4 LEDs) 9536 108 29lb
140W (4 LEDs) 13631 103 29lb
175W (5 LEDs) 17009 103 29lb
210W (6 LEDs) 20362 103 29lb

Specify CCT/CRI

Specify Finish

Specify Dimming Options

Specify Emergency Options

specify Options

You selected

Xacara L™

Product Info

Select all
  • Specification Sheet Imperial
  • Specification Sheet Metric
  • ies files
  • ldt files
  • BIM Files
  • Dimensional Diagrams
  • Product Images
  • Brochures
Download

Dimensional Diagrams

Brochures

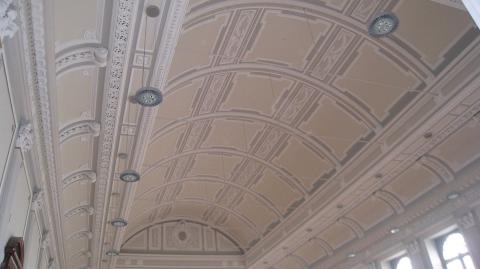

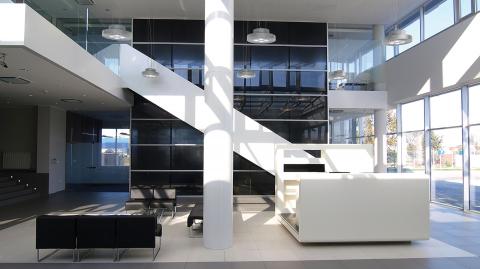

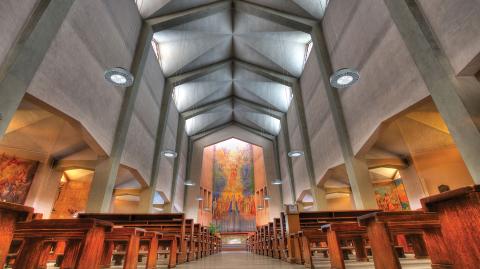

Gallery
