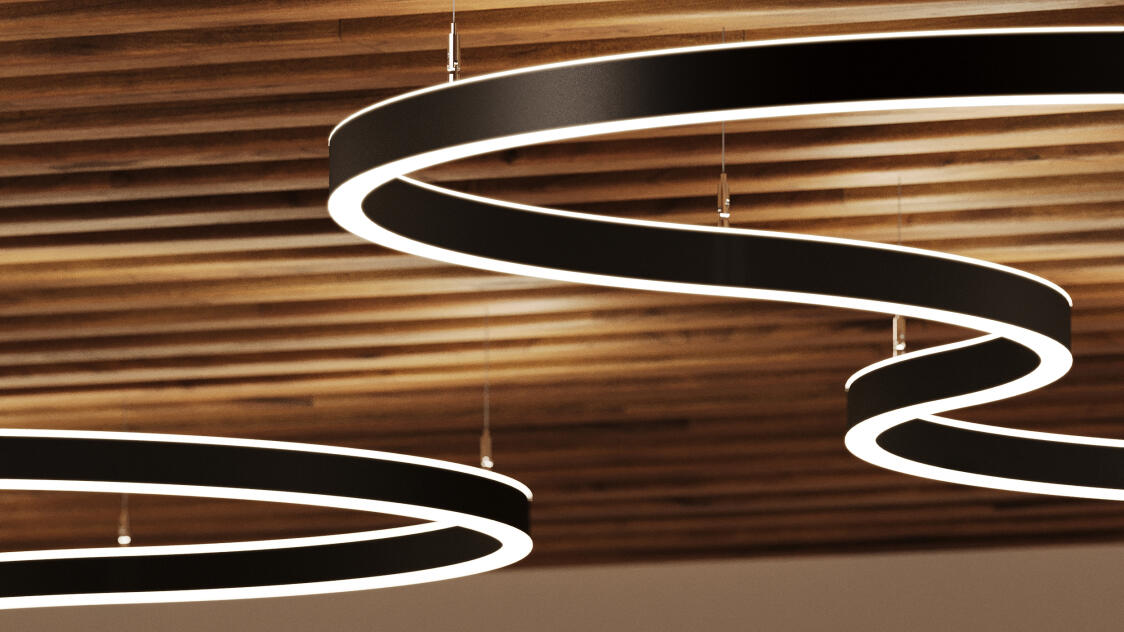

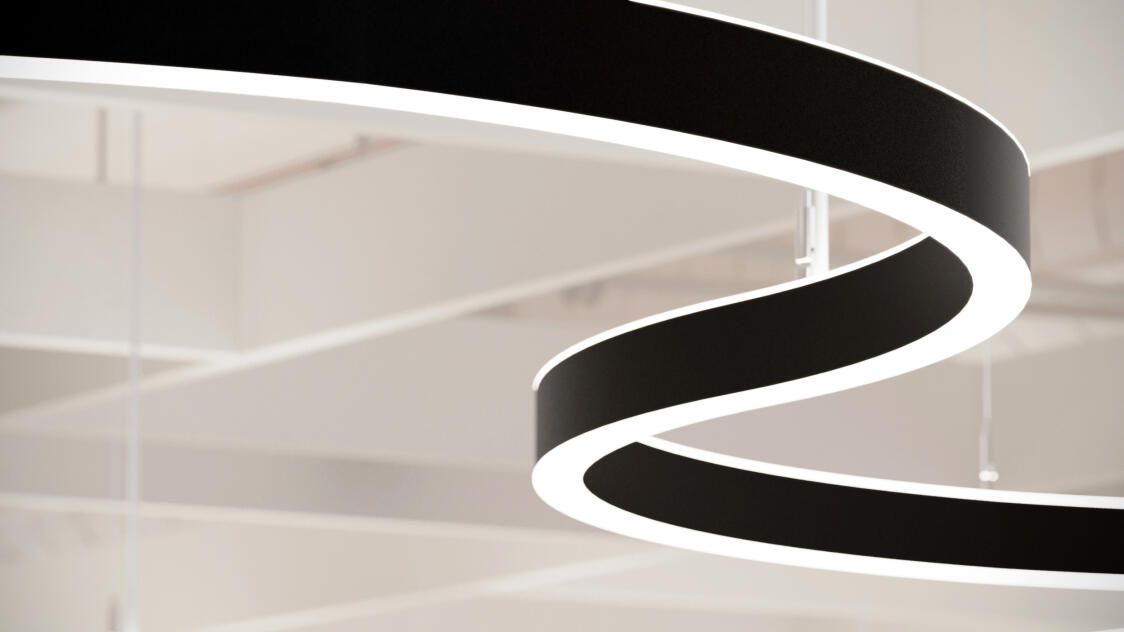

Micro Squiggle™ Continuous

MICRO SQUIGGLE adapts to your space with fluid versatility. This highly customizable curvilinear lighting system features a sleek 1-inch aperture and integrates seamlessly with architectural design. With a variety of curves, straight sections, and joiners, it allows you to create unique configurations that wrap around structural elements, enhancing the space’s architectural expression while meeting your specific design needs.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body and trim

Steel and aluminum.

Power cable

Silver braided.

Finish

Powder coated for standard finishes.

Suspension

Steel cables.

Diffusers

Protruding Lens 0.08" (2.1mm)

Corner radius

Minimum corner radius is 6 inches

Drivers

Remote, HPF electronic drivers for 120-277V, 347V (EU-240V) dimming. Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation. Drivers are either remote mounted or integral to the canopy depending on the size of the fixture.

Electrical

Luminaires are pre-wired with a factory installed branch circuit wiring with quick connectors. Through wiring is used to connect individual luminaires.

High efficiency

High efficiency option available with 80lm/W. Consult factory

Mechanical

Luminaires mount directly over J box (by others - North America only).

PoE

Squiggle can integrate into your data network via Power over Ethernet (PoE) connectivity.

Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

L70 @25°C

> 60,000 hrs.

Approvals

Damp Rated.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct Direct
Icon for Direct-indirect Direct-indirect
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

CR80

Luminaire

Direction

Section Types

End Cap

Lumens (Direct)

Lumens (Indirect)

CRI

CCT (Direct)

CCT (Indirect)

Voltage

Dimming

Suspension

Fixture Finish

Canopy Finish

Emergency Sections

Circuits
