Felix™ Suspended

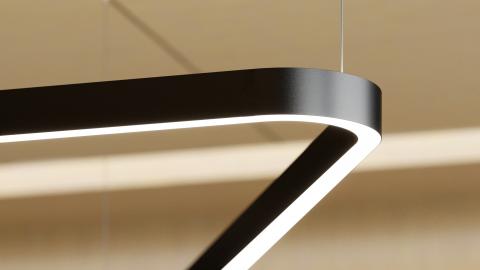

FELIX is a decorative pendant characterized by a smooth rounded corner triangle. The triangle shape is a compelling way to communicate dynamism and energy, and the hollow form with a 1” profile lends itself to large spectacular configurations without overpowering

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body

Aluminum, Equilateral Triangle

Finish

Powder coated

Suspension

Steel cables.

Diffusers

Frosted acrylic.

Remote Mounting Of Drivers

Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation.

Drivers

Remote HPF electronic drivers for 120-277V (EU-240V). The driver is integral to the fixture canopy or remote mount depending on which options are selected.

PoE

Can integrate into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires mount directly over J box (by others - North America only).

Power over Suspension

Optional for Vertical suspension and standard for Hub suspension.

Sensors

Consult factory regarding sensor compatibility.

Acoustic Panels NRC Rating

0.80.

Acoustic Panels Class A Fire Rating

ASTM E-84 material.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness

12mm (0.5").

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 90 CRI).

Reported L70 @25°C (77°F)

> 102,000 hrs.

Approvals

Damp Rated.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

CR90

Luminaire

Lumens/Ft - Direct

Lumens/Ft - Indirect

CRI

CCT (Direct)

CCT (Indirect)

Voltage

Dimming (Remote)

Suspension

Fixture Finish

Canopy Finish

Acoustic Panel Color

Emergency

Circuits
