Felix™ Ceiling

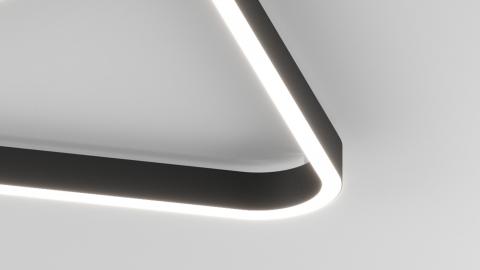

FELIX is a decorative fixture characterized by a smooth rounded corner triangle. The triangle shape is a compelling way to communicate dynamism and energy, and the hollow form with a 1” profile lends itself to large spectacular configurations without overpowering

DOWNLOAD SPEC SHEET

Tech Specs

Body

Aluminum, Equilateral Triangle

Finish

Powder coated

Drivers

Remote HPF electronic drivers for 120-277V (EU-240V).

Diffusers

Frosted acrylic.

Remote Mounting Of Drivers

Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation.

PoE

Can integrate into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires mount directly over J box (by others - North America only).

Sensors

Consult factory regarding sensor compatibility.

Acoustic Panels NRC Rating

0.80.

Acoustic Panels Class A Fire Rating

ASTM E-84 material.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness

12mm (0.5").

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 90 CRI).

Reported L70 @25°C (77°F)

> 102,000 hrs.

Approvals

Damp Rated.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Ceiling Direct Ceiling Direct
Icon for Declare Declare
Icon for PoE PoE
