Le Louvre™ Ceiling Configurator

Name: Le Louvre™ Ceiling
Brand: Beta-Calco

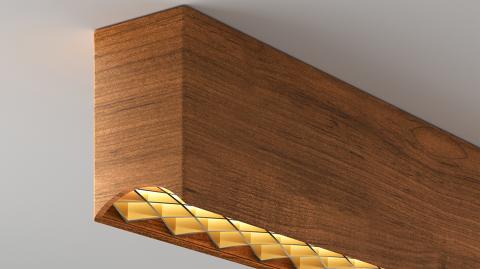

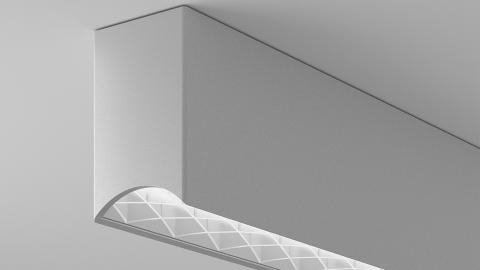

Le Louvre™ Ceiling

The striking new concept in louver technology is disrupting the linear lighting category, and taking glare control to new heights. Our award-winning design with diagonal cross-hatched construction of the louver in a soft concave shape provides not just visual comfort but a touch of panache unseen in traditional linear lighting. Louvers are available in white for higher performance, black for the highest glare control, and rich satinized finishes - chrome, gold, champagne, for elegant interior designs.

Downloads

Tech Specs

Body

Aluminum.

Finish

Powder coated

Mechanical

Luminaires mount directly over J box (by others).

Diffuser

Opal acrylic. 2.4" width.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

BIOS

For circadian lighting, consult factory.

Drivers

HPF electronic drivers for 120-277V, 347V (EU-240V). The driver is integral to the fixture housing.

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Reported L70 @25°C (77°F)

> 60,000 hrs @ 1200 lumens/ft (3600 lumens/m)

Estimated L70 @25°C (77°F)

> 165,000 hrs @ 1200 lumens/ft (3600 lumens/m)

Tunable White

Tunable White range from 2700K to 6500K is available; contact the factory for details.

RGBW

RGBW available, consult factory.

Wood Slat Ceiling

For wood slat ceiling integration, consult factory.

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.
