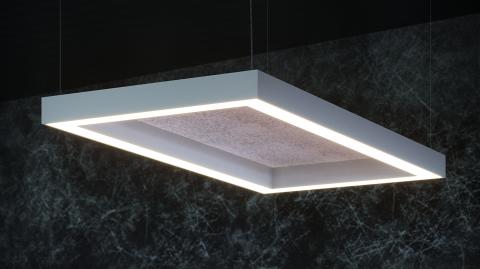

Macro Quad™
Suspended

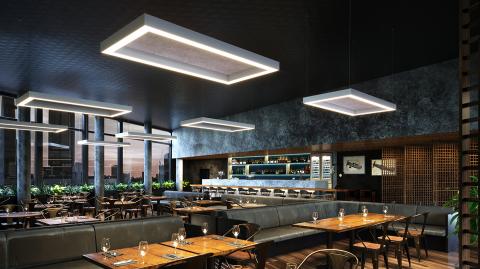

The straight lines and right angles of the rectangle add a balanced and grounded feel to a space. With a robust 4” profile and several quadrilaterals ranging from 2’ to 6’ lengths, MACRO QUAD is ideal for creating and complementing grid effects or for creating sizable multi-tiered arrangements. For sound comfort, MACRO QUAD is available with an acoustic panel designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows.

Features

Body and trim

Steel and aluminum.

Power cable

Silver braided.

Diffusers

Opal polycarbonate, supplied in sections.

Drivers

Integral, HPF electronic drivers for 120-277V, 347V (EU-240V). The driver is integral to the fixture housing.

Integral emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Suspension

Steel cables. Recommended minimum distance from ceiling: 12" (305mm) for white LEDs and 24" (610mm) for colored LEDs (only for direct/indirect).

Finish

Polyester powder coated.

Mechanical

Luminaires mount directly over J box (by others - North America only).

PoE

Integrates into your data network via Power over Ethernet (PoE).

Delivered lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

L70 @25°C (77°F)

> 60,000 hrs.

Approvals

Damp Rated.

Mounting and Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Declare Declare
Icon for PoE PoE

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20
