Matrex Dual Twist™
Product Overview

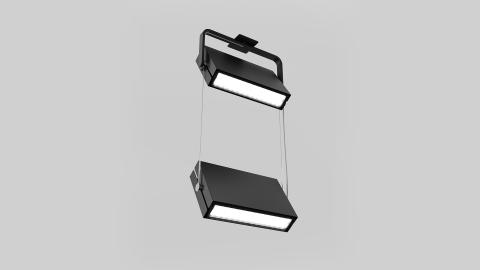

MATREX is a family of spotlights packed with power for projecting light at great distances. With best-in-class thermal management and hidden heat sinks, MATREX’s form factor is significantly smaller than traditional spotlights. Multiple mounting systems are available, providing a variety of functions that work in a range of applications, especially those with multiple ceiling heights.

Features

Body and trim

Steel and aluminum.

Finish

Powder coated as specified. Custom paint finishes available to special order.

Suspension

Steel cables.

Power cable

Silver braided.

Mechanical

Luminaires mount to a junction box or switch box (by others - North America only), depending on canopy selection.

Drivers

HPF, electronic, 120-277V, 347V (EU-240V).

Reported L70 @25°C (77°F)

> 60,000 hrs.

Estimated L70 @25°C (77°F)

> 171,000 hrs.

Integral emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Integral emergency EU luminaires have a 17" (434mm) x 8.3" (210mm) x 2.3" (58mm) canopy with LED charge indicator. Not available with a 347V supply. Drivers are in the canopy and used with the lower module only.

Delivered lumens

Delivered lumens & lpw based on 4000K, CRI 80+.

Designed by

Serge Cornelissen.

Mounting and Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Ceiling Direct Ceiling Direct
Icon for Suspended Indirect Suspended Indirect
Icon for 15° 15°
Icon for 30° 30°
Icon for 50° 50°
Icon for 70° 70°

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20
