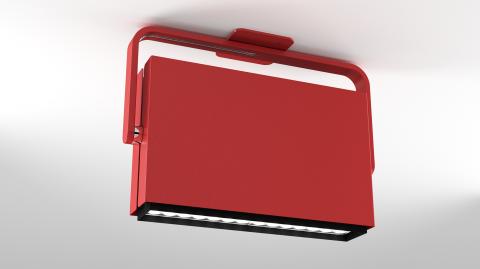

Matrex Single™ Surface

MATREX is a family of spotlights packed with power for projecting light at great distances. With best-in-class thermal management and hidden heat sinks, MATREX’s form factor is significantly smaller than traditional spotlights. Multiple mounting systems are available, providing a variety of functions that work in a range of applications, especially those with multiple ceiling heights.

DOWNLOAD SPEC SHEET

Tech Specs

Body and trim

Steel and aluminum.

Finish

Powder coated as specified. Custom paint finishes available to special order.

Drivers

HPF, electronic, 120-277V, 347V (EU-240V). The driver is integral to the fixture housing.

Delivered lumens

Delivered lumens & lpw based on 4000K, CRI 80+.

Remote emergency system (North America only)

Emergency option provides a 1.5 hour emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (maximum distance between wall/ceiling plate and luminaire is 4.5m/15’). Test switch fits a single gang box (not supplied).

Mechanical

Luminaires mount to a junction box or switch box (by others - North America only), depending on canopy selection.

Reported L70 @25°C (77°F)

> 60,000 hrs.

Estimated L70 @25°C (77°F)

> 171,000 hrs.

Sensors

Consult factory regarding sensor compatibility.

Approvals

Damp Rated.

Designed by

Serge Cornelissen.

Design

US Pat. No. D917,765.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Ceiling Direct Ceiling Direct
Icon for Wall Direct Wall Direct
Icon for 15° 15°
Icon for 30° 30°
Icon for 50° 50°
Icon for 70° 70°
Icon for Declare Declare
