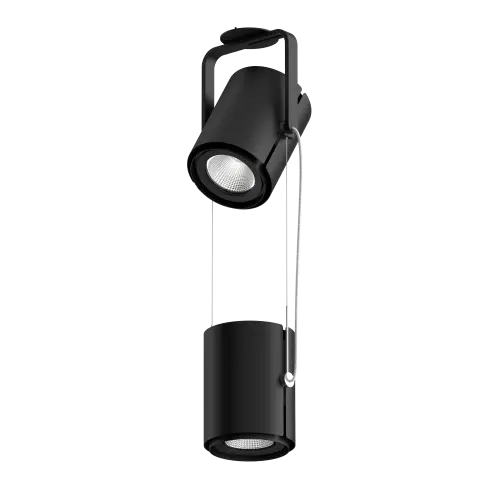

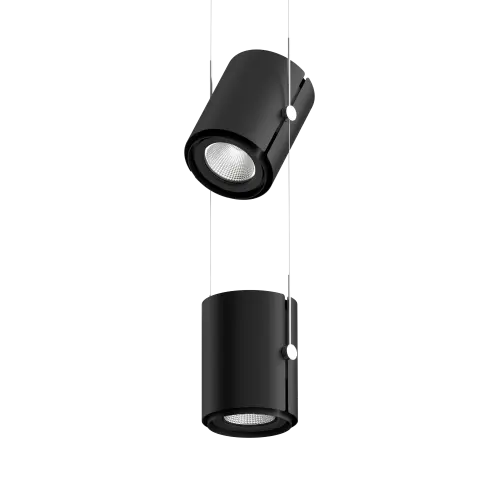

Matrex RD Dual™ Suspended

MATREX is a family of spotlights packed with power for projecting light at great distances. With best-in-class thermal management and hidden heat sinks, MATREX’s form factor is significantly smaller than traditional spotlights. Multiple mounting systems are available, providing a variety of functions that work in a range of applications, especially those with multiple ceiling heights.

DOWNLOAD SPEC SHEET

Tech Specs

Body and trim

Steel and aluminum.

Finish

Powder coated as specified. Custom paint finishes available to special order.

Suspension

Steel cables.

Power cable

Silver braided.

Integral emergency system (EU only)

Emergency option provides a 3 hour emergency lighting facility. Integral emergency EU luminaires have a 13.4" (340mm) x 2.3" (58mm) canopy with LED charge indicator.

Drivers

HPF, electronic, 120-277V, 347V (EU-240V). The driver is integral to the fixture housing except when ordering emergency, then the driver is integral to the canopy.

Mechanical

Luminaires mount to a junction box (by others - North America only).

Sensors

Consult factory regarding sensor compatibility.

Delivered lumens

Delivered lumens & lpw based on 4000K, CRI 80+.

Approvals

Damp Rated.

Reported L70 @25°C (77°F)

> 60,000 hrs.

Estimated L70 @25°C (77°F)

> 171,000 hrs.

Designed by

Serge Cornelissen.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Suspended Indirect Suspended Indirect
Icon for 15° 15°
Icon for 30° 30°
Icon for 50° 50°
Icon for 70° 70°
Icon for Declare Declare
