Micro Cylinder 2.5™ Suspended

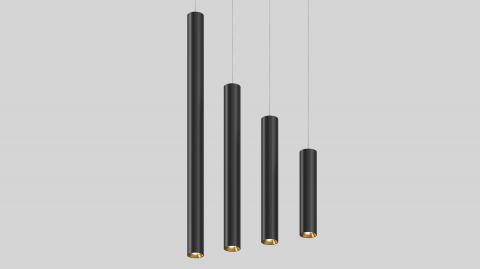

Micro Cylinder dabs elegance to minimalism.  Lustrous anodized bezels revamp a modest shape into a dashing pendant. With lengths ranging from 12” to 36”, Micro Cylinder lends itself to large-scale cascades without being obtrusive or overwhelming to a space. The light output is optimized according to the length of the cylinder allowing more lumen package options for various performance requirements. Regressed optics combined with bezels and a slender profile offer visual and aesthetic comfort.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body

Extruded aluminum.

Finish

Powder coated.

Suspension/power cable

Power over aircraft cable.

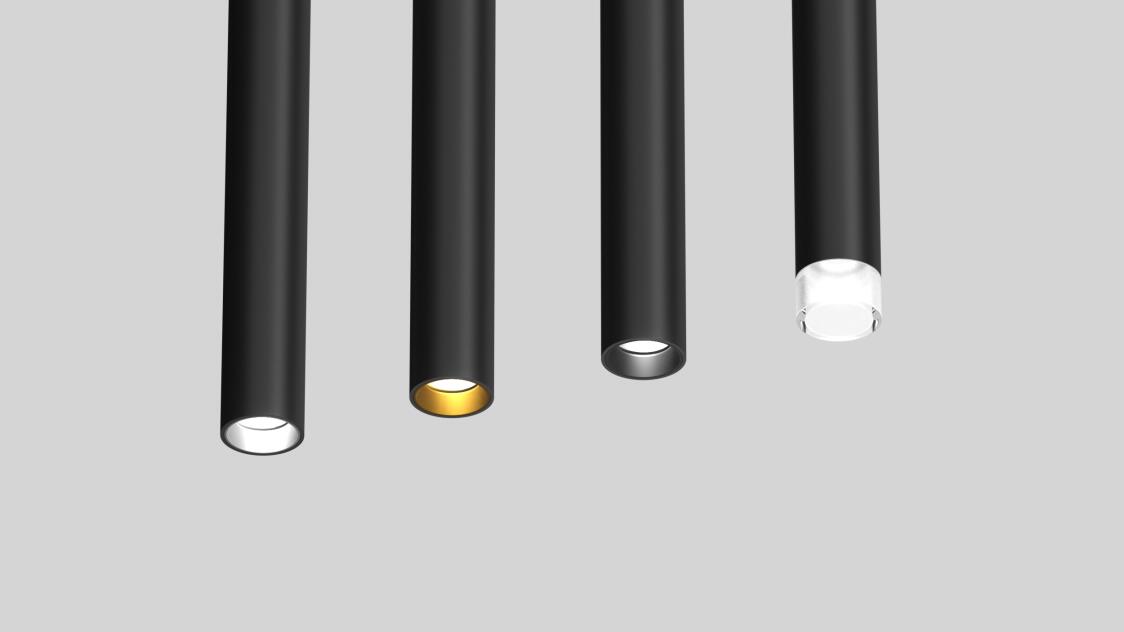

Bezel

Silver, black or gold anodized.

Driver

HPF electronic drivers for 120-277V, 347V (EU-240V). The driver is integral to the fixture canopy.

Mechanical

Luminaires mount directly over J box (by others).

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 90+.

Sensors

Consult factory regarding sensor compatibility.

Reported L70 @25°C (77°F)

> 55,000 hrs

Estimated L70 @25°C (77°F)

> 200,000 hrs

Approvals

Damp Rated.

Design

US Design Patent Pending.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for 20° 20°
Icon for 45° 45°
Icon for Declare Declare

Product Configurator

CR90

Luminaire

CRI

CCT

Beam Angle

Voltage

Dimming (Remote)

Fixture Finish

Canopy Finish

Bezel Finish

Suspension

Product Family

Beta-Calco envisions a world where beauty is a baseline standard for the built environment. We drive towards more dynamic and impressive solutions with robust product development.
Micro Cylinder 1.5™ Suspended
Micro Cylinder 1.5 Cluster™ Suspended
Micro Cylinder 2.5™ Suspended
Micro Cylinder 2.5™ Ceiling Surface
Micro Cylinder 1.5™ Ceiling Surface
