Micro Cylinder 1.5™
Suspended
<p>LOBBY</p> <p>PRODUCT VIDEO</p> <p>BAR SHOT - DAY</p> <p>DEEP DIVE VIDEO</p> <p>BAR SHOT - NIGHT</p>
1 / 11

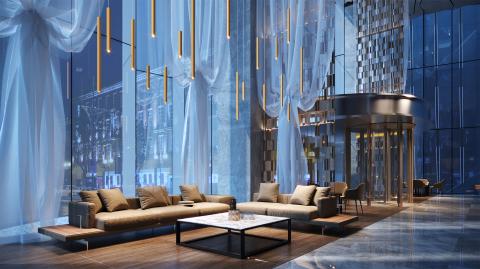

<p>LOBBY</p>

LOBBY

2 / 11

PRODUCT VIDEO

3 / 11

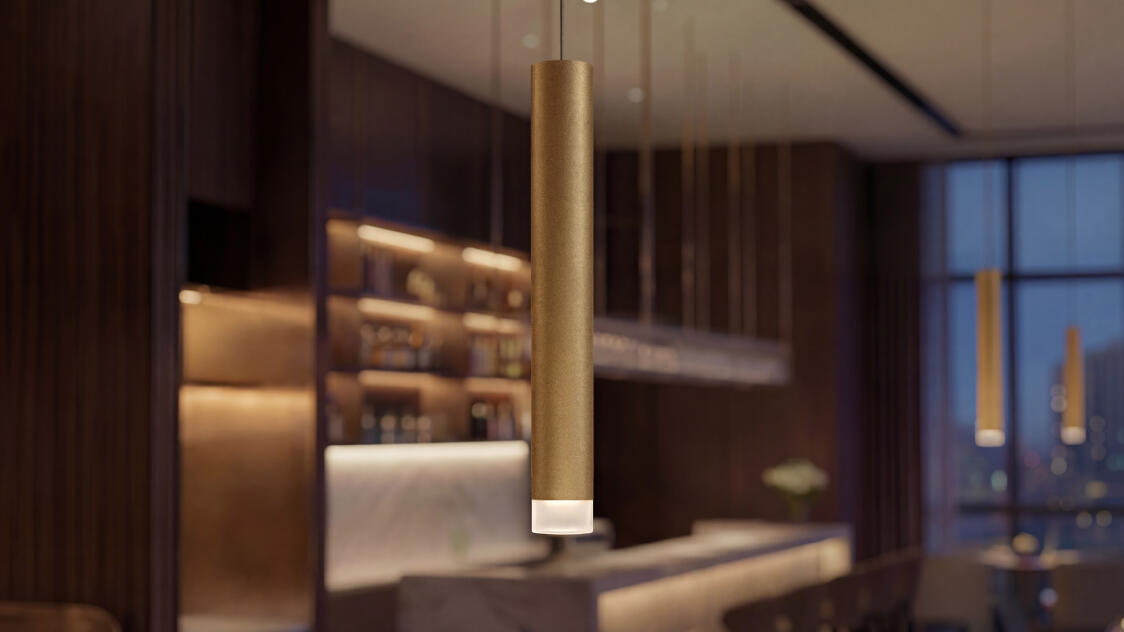

<p>BAR SHOT - DAY</p>

BAR SHOT - DAY

4 / 11

DEEP DIVE VIDEO

5 / 11
<p>BAR SHOT - NIGHT</p>

BAR SHOT - NIGHT

6 / 11

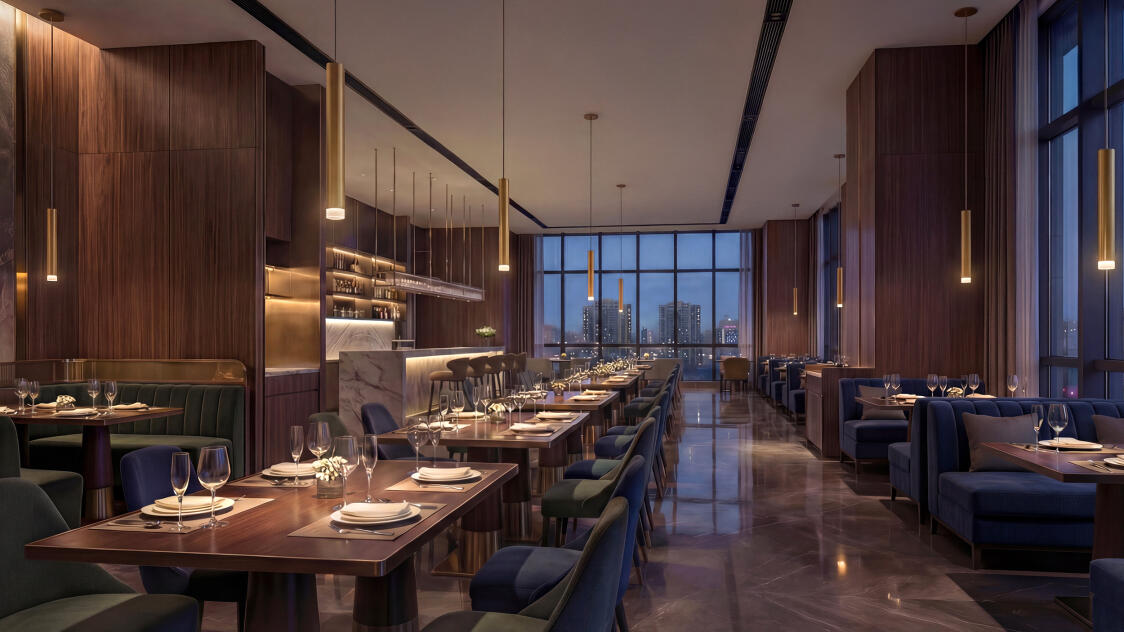

<p>BAR</p>

BAR

7 / 11
<p>CLOSE UP</p>

CLOSE UP

8 / 11

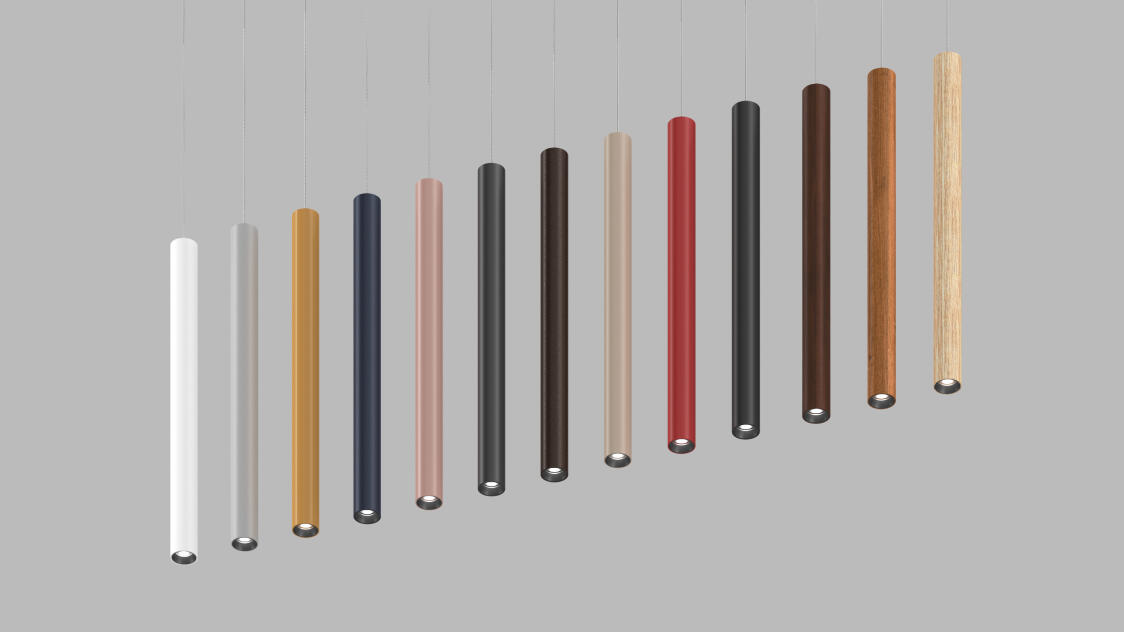

<p>FINISHES</p>

FINISHES

9 / 11

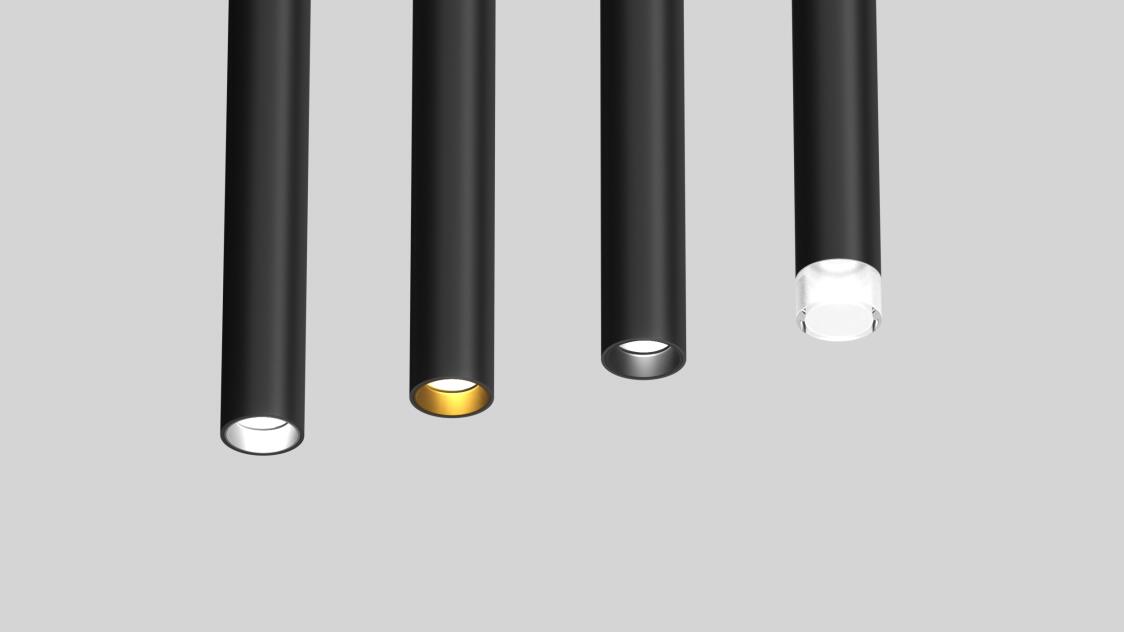

<p>BEZELS</p>

BEZELS

10 / 11
<p>LENGTHS</p>

LENGTHS

11 / 11
<p>BLACK METALLIC TEXTURED</p>

BLACK METALLIC TEXTURED

Thumbnail for <p>LOBBY</p> Thumbnail for <p>PRODUCT VIDEO</p> Thumbnail for <p>BAR SHOT - DAY</p> Thumbnail for <p>DEEP DIVE VIDEO</p> Thumbnail for <p>BAR SHOT - NIGHT</p> Thumbnail for <p>BAR</p> Thumbnail for <p>CLOSE UP</p> Thumbnail for <p>FINISHES</p> Thumbnail for <p>BEZELS</p> Thumbnail for <p>LENGTHS</p> Thumbnail for <p>BLACK METALLIC TEXTURED</p>
Prev Next
1
1>
2>
3>
4>
5>
6>
7>
8>
9>
10>
11>

Micro Cylinder dabs elegance to minimalism.  Lustrous anodized bezels revamp a modest shape into a dashing pendant. With lengths ranging from 12” to 36”, Micro Cylinder lends itself to large-scale cascades without being obtrusive or overwhelming to a space. The light output is optimized according to the length of the cylinder allowing more lumen package options for various performance requirements. Regressed optics combined with bezels and a slender profile offer visual and aesthetic comfort.

Features

Body

Extruded aluminum.

Finish

Powder coated.

Suspension/power cable

Power over aircraft cable.

Bezel

Silver, black or gold anodized.

Driver

HPF electronic drivers for 120-277V, 347V (EU-240V). The driver is integral to the fixture canopy.

Mechanical

Luminaires mount directly over J box (by others).

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 90+.

Sensors

Consult factory regarding sensor compatibility.

Reported L70 @25°C (77°F)

> 55,000 hrs

Estimated L70 @25°C (77°F)

> 200,000 hrs

Approvals

Damp Rated.

Design

US Design Patent Pending.

Mounting and Optics

Icon for Suspended Direct Suspended Direct
Icon for 25° 25°
Icon for 42° 42°
Icon for Declare Declare

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Share this fixture

Configurator

You selected
CR90

Luminaire

MCYL1P12 12", 800 lms MCYL1P18 18", 800 lms MCYL1P24 24", 900 lms MCYL1P36 36", 900 lms

CRI

CR90 CRI 90+

CCT

CTA27 2700K CTA30 3000K CTA35 3500K CTA40 4000K

Beam Angle

BA25 25° BA42 42°

Voltage

V1 120/277V V2 240V ¹ V3 347V ²

Dimming

DA01 0-10V Dimming 1.0% ¹ DA02 0-10V Dimming 0.1% ² DA20 DALI Dimming 0.1% ² DA21 DALI Dimming 1.0% ² DA30 DSI/switchDim ² ³

Fixture Finish

White FA01 White Black Metallic Textured FA02 Black Metallic - Textured Silver Metallic Textured FA20 Silver Metallic - Textured Gold Metallic Textured FA25 Gold Metallic - Textured Wood Grain - Light Cherry FA27 Wood grain - Light Cherry ¹ Wood Grain - Dark Walnut FA28 Wood grain - Dark Walnut ¹ Midnight Blue Metallic Textured FA44 Midnight Blue Metallic - Textured Copper Metallic FA45 Copper Metallic Charcoal Metallic Textured FA46 Charcoal Metallic - Textured Bronze Metallic Textured FA47 Bronze Metallic - Textured Champagne Metallic FA52 Champagne Metallic Red Metallic Textured FA53 Red Metallic - Textured

Bezel Finish

Black Anodized FB24 Black Anodized Silver Anodized FB58 Silver Anodized Gold Anodized FB59 Gold Anodized

Suspension

HLA03 3ft cable suspension HLA06 6ft cable suspension HLA09 9ft cable suspension

Family

Beta-Calco
