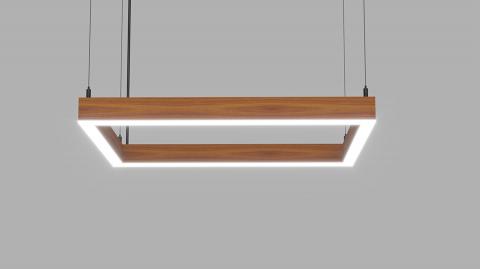

Micro Quad II™ Suspended

The straight lines and right angles of the rectangle add a balanced and grounded feel to a space. With a super-slim 1” profile and several quadrilaterals ranging from 2’ to 7’ squared, MICRO QUAD II is ideal for creating and complementing grid effects or for creating sizable multi-tiered arrangements. The light emission is direct/indirect and can be coordinated with MICRO QUAD DE which emits light from the inner and outer sides of the frame. For sound comfort, MICRO QUAD II is available with an acoustic panel designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows. For a whimsical style, combine MICRO QUAD with MICRO RING or MICRO TRIANGLE.

DOWNLOAD SPEC SHEET

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Stainless steel cables.

Power cable

Silver braided.

Remote Mounting Of Drivers

Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.

Drivers

HPF electronic drivers for 120-277V (EU-240V). Drivers are either remote mounted or integral to the canopy depending on the size of the fixture.

PoE

Micro Quad II can integrate into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires mount directly over J box (by others - North America only).

Diffusers

Frosted acrylic. Lens protrudes 4.8mm/0.19".

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

Sensors

Consult factory regarding sensor compatibility.

CRI

Fixture supplied at 80 CRI, 90 CRI available upon request.

Acoustic Panels NRC Rating

0.80.

Acoustic Panels Class A Fire Rating

ASTM E-84 material.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness

12mm (0.5").

Reported L70 @25°C (77°F)

> 60,000 hrs.

Approvals

Damp Rated.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Acoustic Acoustic
Icon for Direct Direct
Icon for Direct-indirect Direct-indirect
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

Lumen & Wattage Reduction

PR1 not available with 983810.  Custom reduction percentages available upon request.

Optional Low Voltage
