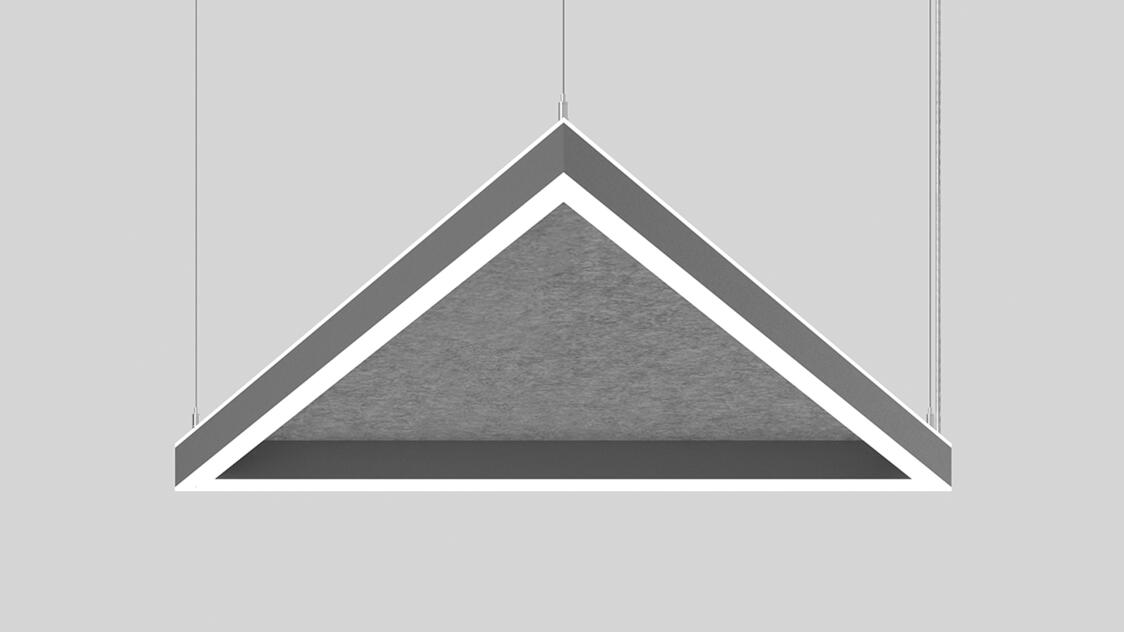

Micro Triangle II™ Suspended

The triangle shape is a powerful way to create an edgy and energetic aesthetic. With a super-slim 1” profile and 5 sizes ranging from 2’ to 6’, MICRO TRIANGLE II is ideal for offsetting symmetrical layouts. The light emission is direct only or direct/indirect and can be coordinated with MICRO TRIANGLE SE which emits light from the inner side of the frame. For sound comfort, MICRO TRIANGLE II is available with an acoustic panel designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body

Aluminum, Equilateral Triangle

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Remote Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Remote Mounting Of Drivers

Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation.

Drivers

Remote HPF electronic drivers for 120-277V (EU-240V). The driver is integral to the fixture canopy or remote mount depending on which options are selected.

Mechanical

Luminaires mount directly over J box (by others - North America only).

Acoustic Panels NRC Rating

0.80.

Acoustic Panels Class A Fire Rating
ASTNM E-84 material.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness
12mm (0.5").

PoE

Micro Triangle II can integrate into your data network via Power over Ethernet (PoE) connectivity.

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

Sensors

Consult factory regarding sensor compatibility.

Diffusers

Frosted acrylic.

Reported L70 @25°C (77°F)

> 60,000 hrs.

Approvals

Damp Rated.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Acoustic Acoustic
Icon for Direct Direct
Icon for Direct/Indirect Direct/Indirect
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

Luminaire

Lumens (Direct)

Lumens (Indirect)

CRI

CCT (Direct)

CCT (Indirect)

Voltage

Dimming (Remote)

Suspension

Fixture Finish

Canopy Finish

Acoustic Panel Finish

Emergency

Circuits
