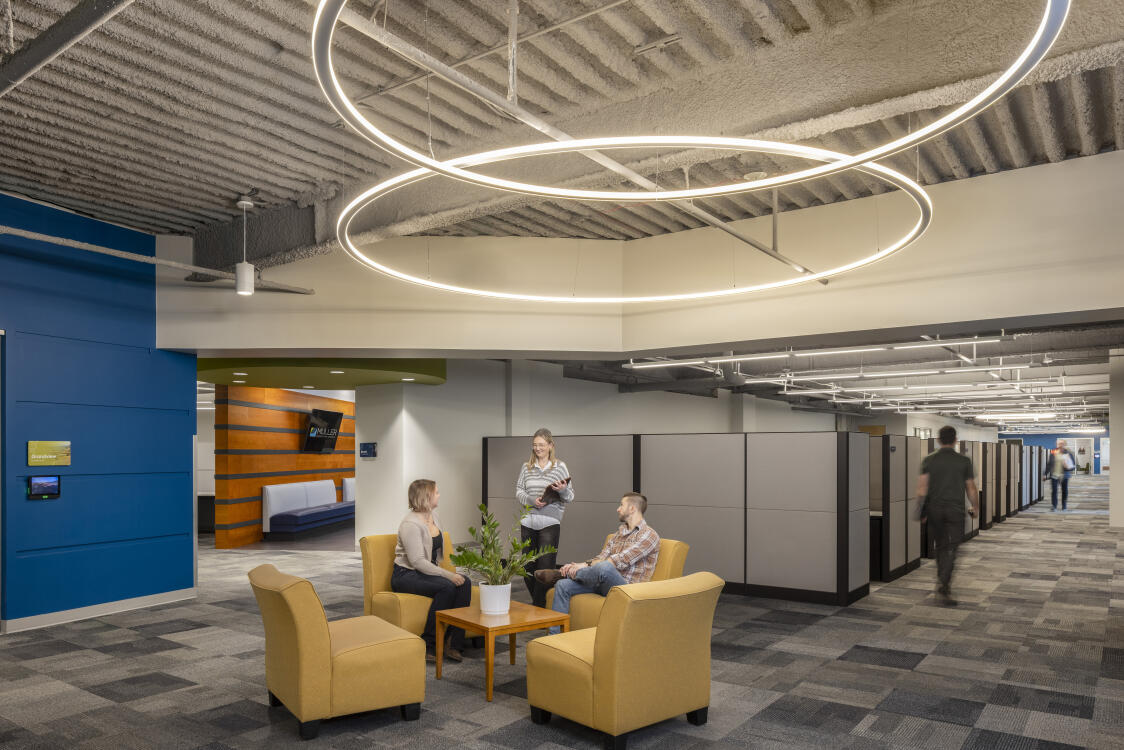

Micro Ring DE™ Suspended
With a super slim profile and 8 diameters ranging from 26" to 144", MICRO RING DE is ideal for creating sizable multi-tiered circular arrangements. The ring emits light from the inside and the outside of the ring, and can be coordinated with 5 other emission options in the MICRO RING family for creating multiple layers of light. Buoyant and energetic, MICRO RING DE is just as impactful as a single standalone piece. MICRO RING DE is available with an acoustic panel up to 8’ in diameter. With light emission coming from the inner ring, the acoustic panel is illuminated, creating another decorative dimension. Acoustic panels are designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows. For a whimsical style, combine MICRO RING with MICRO TRIANGLE or MICRO QUAD.
Tech Specs
Body
Aluminum.
Finish
Powder coated.
Suspension
Steel cables.
Power cable
Silver braided.
Remote Emergency
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).
Drivers
Remote, HPF electronic drivers for 120-277V (EU-240V). Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation. The driver is integral to the fixture canopy or remote mount depending on which options are selected.
PoE
Integrates into your data network via Power over Ethernet (PoE) connectivity.
Diffuser
Protruding Lens 0.08" (2.1mm).
Acoustic Panels NRC Rating
0.80.
Acoustic Panels Class A Fire Rating
ASTM E-84 material.
Acoustic Panels Material
100% recycled polyester fiber (PET).
Acoustic Panels Thickness
12mm (0.5")
Mechanical
Luminaires attached directly to the J box (by others - North America only).
Sensors
Consult factory regarding sensor compatibility.
Delivered Lumens
Delivered lumens & LPW based on 4000K (min 80 CRI).
Reported L70 @25°C (77°F)
> 60,000 hrs.
Approvals
Damp Rated.
Design
US Pat. No. D835,328.
Approvals
Mounting & Optics
Suspended Inside/Outside
Acoustic
General Diffuse
Declare
PoE
