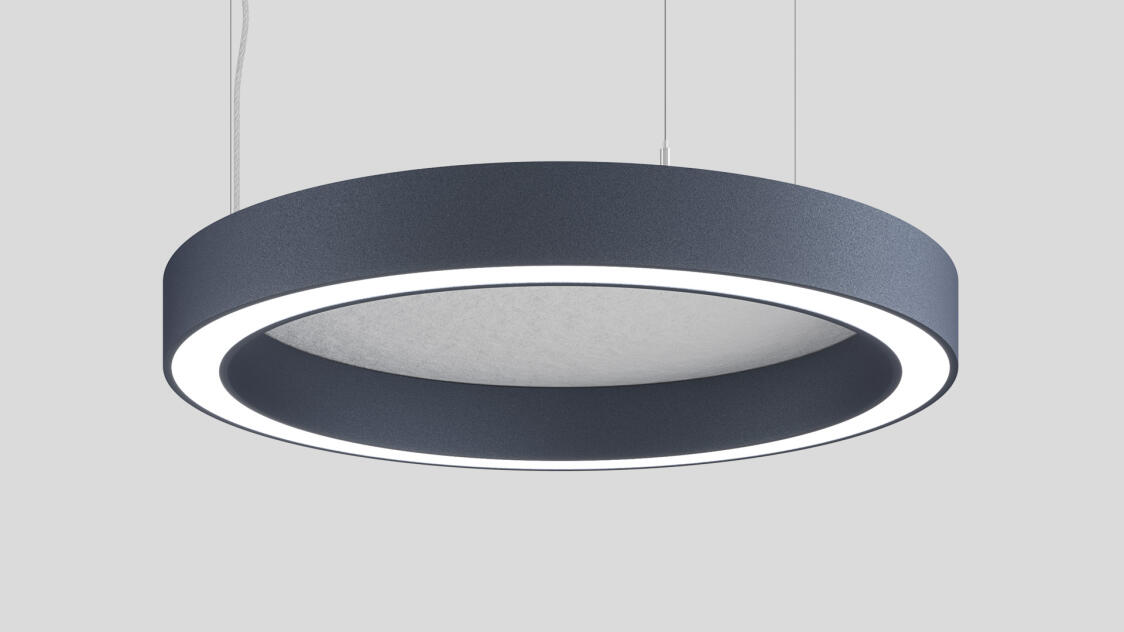

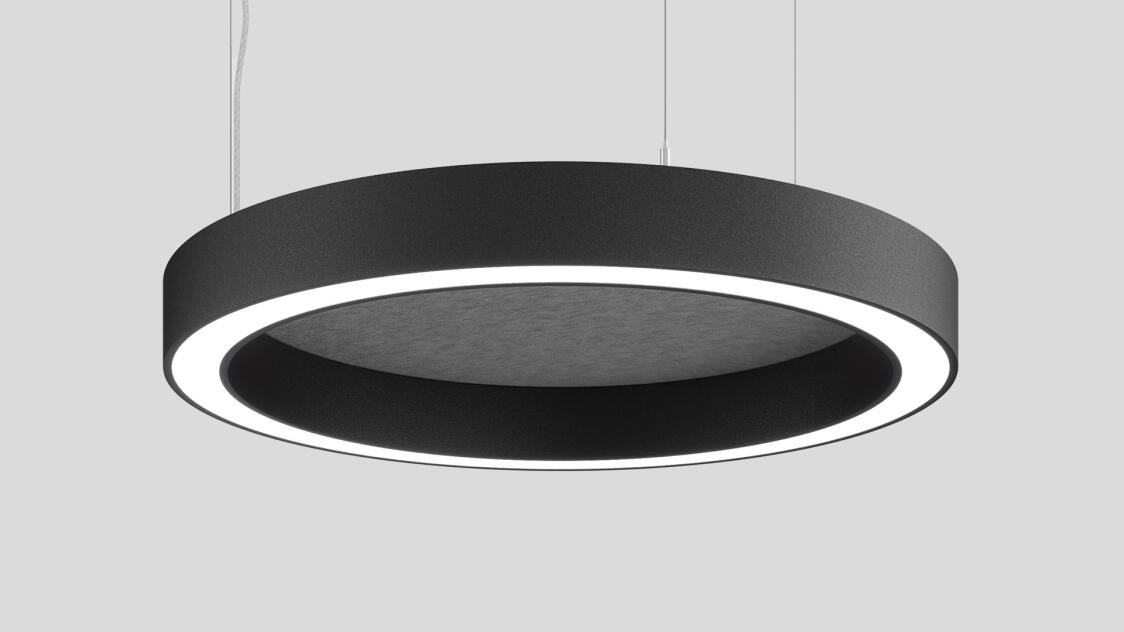

Ring 3™ Suspended

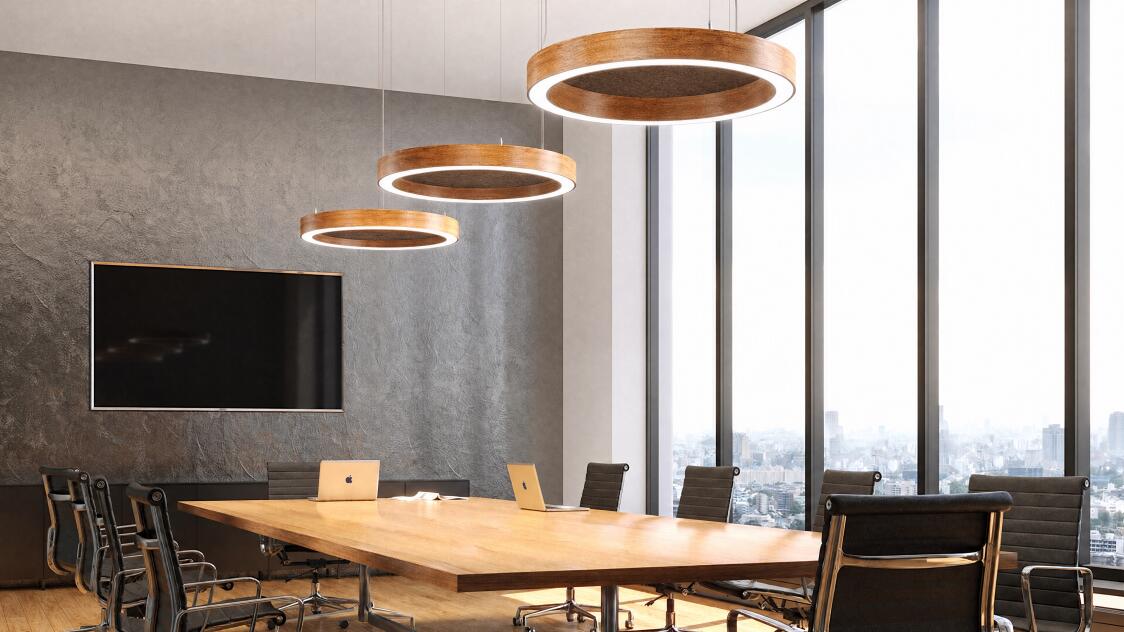

RING 3 is our 2nd generation circular performance pendant. Now with a slender 3” profile, the lightweight design works well as a low-hanging ambient light and is ideal for lower ceilings. The new design still delivers matchless light outputs and multiple control integrations including PoE and wellness technology including BIOS and Dim to Warm. Indirect light is available with our powerful Batwing optic which provides wider light coverage and is an effective way to add to the ambient illumination. For sound comfort, RING 3 is available with an acoustic panel up to 8’, designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows.

DOWNLOAD SPEC SHEET

Tech Specs

Body and trim

Steel and aluminum.

Finish

Powder coated.

Power cable

Silver braided.

Diffusers

Opal polycarbonate direct, batwing indirect, supplied in sections.



Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Drivers

Integral, HPF electronic drivers for 120-277V (EU-240V). The driver is integral to the fixture housing.

Suspension

Steel cables. Recommended minimum mounting heights: 1ft (305mm). Maximum angle tilt 5°.

PoE

Ring 3 can integrate into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires mount directly over J box (by others - North America only).

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 90 CRI) for White LEDs only. Data shown at MAX values.

Sensors

Consult factory regarding sensor compatibility.

L70 @25°C (77°F)

> 50,000 hrs.

Approvals

Damp Rated.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Acoustic Acoustic
Icon for Declare Declare
Icon for Dim to Warm Dim to Warm
Icon for PoE PoE
