Ring™ Suspended

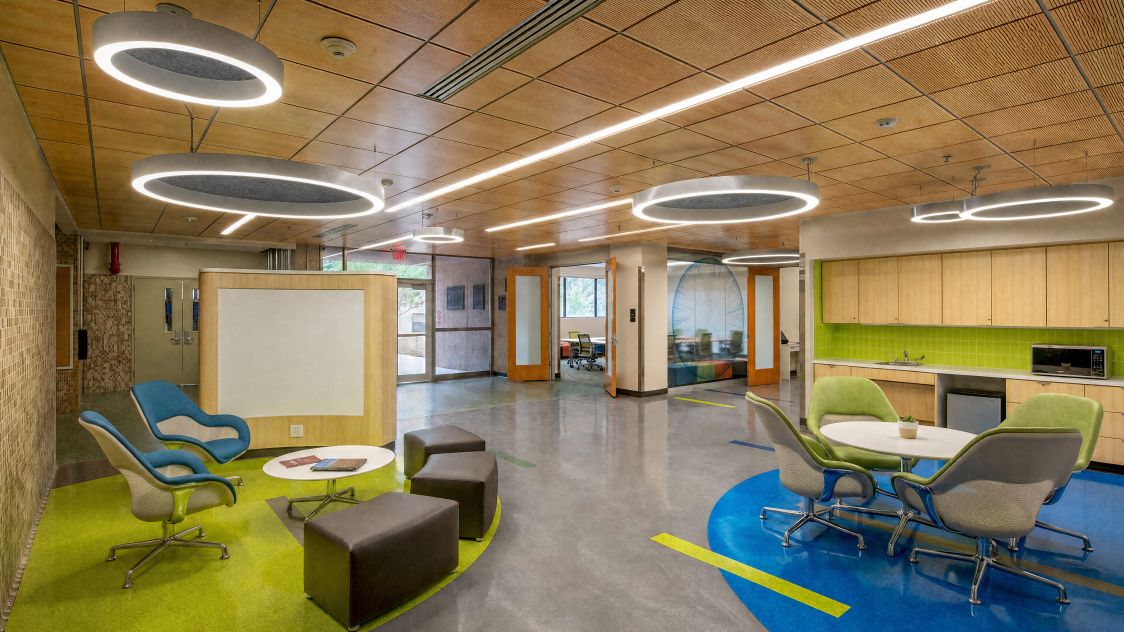

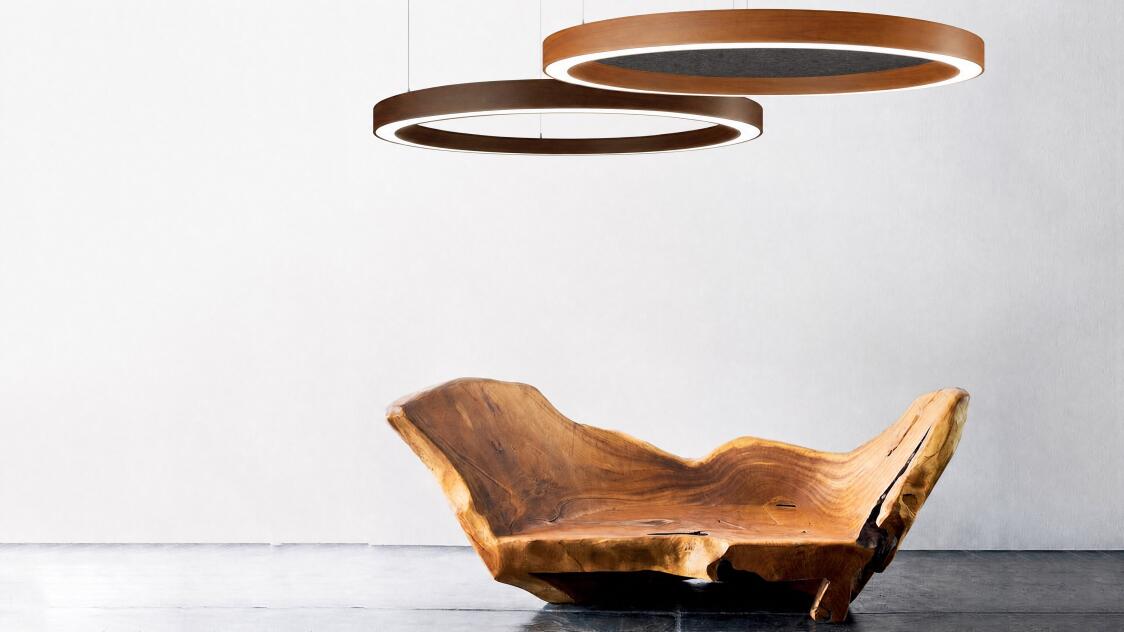

No shape evokes the feeling of harmony, community, and perfection as the circle.  The closed curve of RING draws warmth from any space or brings a sense of movement, power, and energy, especially when clustered and cascaded into remarkable configurations.  Diameters range from 2 to 18 feet with optional indirect light to add a halo effect.
RING is available in 12 finishes which were selected based on their versatility to a variety of color schemes.  Metallic sheens balance out the functional forms with elegance.  The wood finishes ground the space with a feeling of warmth.
For sound comfort, RING is available with an acoustic panel up to 8’ and complementing non-illuminating panels.  Acoustic panels are designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body and trim

Steel and aluminum.

Finish

Powder coated.

Power cable

Silver braided.

Diffusers

Opal polycarbonate direct/Clear polycarbonate indirect, supplied in sections.

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self-contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Drivers

Integral, HPF electronic drivers for 120-277V (EU-240V). The driver is integral to the fixture housing.

PoE

Ring can integrate into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires mount directly over J box (by others - North America only).

Suspension

Steel cables. Recommended minimum mounting heights: 305mm/12" for White LEDs and 610mm/24" for Colored LEDs (Only for Direct/Indirect). Maximum angle tilt 5°.

Drivers: RGBW

Integral HPF electronic drivers/DMX interfaces for 120-277V (EU-240V). Luminaires require a DMX controller by others.

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

Sensors

Consult factory regarding sensor compatibility.

L70 @25°C (77°F)

> 50,000 hrs.

Approvals

Damp Rated.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for RGBW RGBW
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

CR80

Luminaire

RNGP1P02 2ft, Direct, 6000 lms Direct RNGP1P03 3ft, Direct, 10000 lms Direct RNGP1P04 4ft, Direct, 14000 lms Direct RNGP1P05 5ft, Direct, 18000 lms Direct RNGP1P06 6ft, Direct, 21000 lms Direct RNGP1P07 7ft, Direct, 26000 lms Direct RNGP1P08 8ft, Direct, 26000 lms Direct RNGP1P09 9ft, Direct, 32000 lms Direct RNGP1P12 12ft, Direct, 42000 lms Direct RNGP1P18 18ft, Direct, 67000 lms Direct RNGP2P02 2ft, Direct/Indirect, 6000 lms Direct, 3000 lms Indirect RNGP2P03 3ft, Direct/Indirect, 10000 lms Direct, 5000 lms Indirect RNGP2P04 4ft, Direct/Indirect, 14000 lms Direct, 5000 lms Indirect RNGP2P05 5ft, Direct/Indirect, 18000 lms Direct, 9000 lms Indirect RNGP2P06 6ft, Direct/Indirect, 21000 lms Direct, 9000 lms Indirect RNGP2P07 7ft, Direct/Indirect, 26000 lms Direct, 14000 lms Indirect RNGP2P08 8ft, Direct/Indirect, 26000 lms Direct, 15000 lms Indirect RNGP2P09 9ft, Direct/Indirect, 32000 lms Direct, 16000 lms Indirect RNGP2P12 12ft, Direct/Indirect, 42000 lms Direct, 21000 lms Indirect RNGP2P18 18ft, Direct/Indirect, 67000 lms Direct, 38000 lms Indirect

Lm/ft (Direct)

Lm/ft (Indirect)

CRI

CCT (Direct)

CCT (Indirect)

Uplight Diffuser

Voltage

Dimming (Direct)

Dimming (Indirect)

Suspension

Fixture Finish

Canopy Finish

Acoustic Panel Finish

Emergency

Circuits

Controls
