Endless Quad™ Suspended

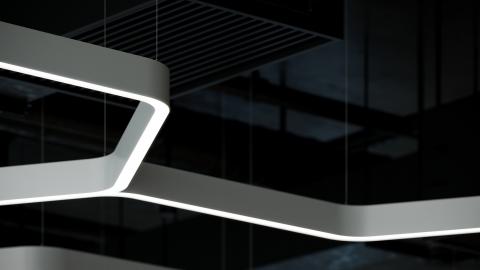

The fluid lines of the Endless linear system morph into finite rectangular forms. With warm rounded corners, ENDLESS QUAD adds a comforting structure to functional spaces. Simple and succinct, the quadrilateral provides geometric definition to the ceiling area that can be used to frame special areas. Crank up the design but turn down the noise with our new acoustic panel styles.

DOWNLOAD SPEC SHEET

Tech Specs

Body

Extruded and die-cast aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Remote Emergency system

Emergency option provides a 1.5 hour (3hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch. Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Sensors

Compatible with Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, Philips, and others. Consult factory.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V). The driver is integral to the fixture housing.

Mechanical

Luminaires mount directly over J box (by others).

Diffuser

Opal polycarbonate.

Reported L70 @25°C (77°F)

60,000 hrs @ 1600 lumens/ft (5200 lumens/m).

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 90+.

Approvals

Damp Rated.

Designed by

Serge Cornelissen.

Design

US Design Patent Pending.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct Direct
Icon for Indirect Indirect
Icon for Declare Declare
Icon for PoE PoE
