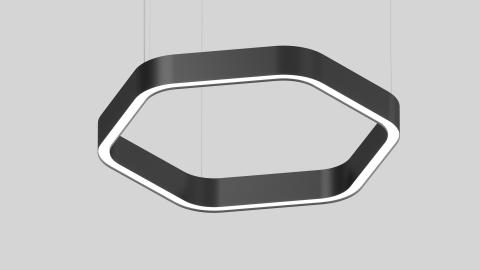

The fluid lines of the Endless system transform into a closed-loop six-sided pendant. With rounded edges and a hollow form, HEXAGON adds a serene visual element and a unique alternative to the perfectionist ring. As a strong geometrical shape, Hexagon remains minimalist while conveying stability and lightness. Available with an acoustic panel in 6 colors.

Features

Body

Extruded and die-cast aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NAonly). Not available with a 347V supply.

Mechanical

Luminaires mount directly over J box (by others).

Drivers

HPF electronic drivers for 120-277V, 347V (EU-240V).

Diffuser

Opal acrylic.

Reported L70 @25°C (77°F)

>60,000 hrs @ 1600 lumens/ft (5200 lumens/m)

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 90+

Approvals

Damp location (indoor use only).

Designed by

Serge Cornelissen

Mounting and Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Acoustic Acoustic
Icon for Direct Direct
Icon for Indirect Indirect

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Share this fixture

Configurator

You selected
CR90 / V1 / DA01

Luminaire

HEXG1P02 2ft, Direct HEXG1P03 3ft, Direct HEXG1P04 4ft, Direct HEXG1P05 5ft, Direct HEXG1P06 6ft, Direct HEXG1P07 7ft, Direct HEXG2P02 2ft, Direct/Indirect HEXG2P03 3ft, Direct/Indirect HEXG2P04 4ft, Direct/Indirect HEXG2P05 5ft, Direct/Indirect HEXG2P06 6ft, Direct/Indirect HEXG2P07 7ft, Direct/Indirect

Lm/ft (Direct)

LPF030 300 lm/ft LPF050 500 lm/ft LPF070 700 lm/ft

Lm/ft (Indirect)

LPG000 Not required LPG030 300 lm/ft ¹ LPG050 500 lm/ft LPG070 700 lm/ft LPG090 900 lm/ft

CRI

CR90 CRI 90+

CCT

CTA30 3000K CTA35 3500K CTA40 4000K

Uplight Diffuser

UD0 Not required UD1 Clear diffuser (Batwing)

Voltage

V1 120/277V

Dimming

DA01 0-10V Dimming 1.0%

Fixture Finish

White FA01 White Black Metallic Textured FA02 Black Metallic Textured ¹ Silver Metallic Textured FA20 Silver Metallic Textured

Canopy Finish

White CF01 White Black Metallic Textured CF02 Black Metallic Textured Silver Metallic Textured CF20 Silver Metallic Textured

Acoustic Panel Color

AP00 Not required Acoustic - White AP04 White Acoustic - Apple Green AP13 Apple Green Acoustic - Blue AP22 Blue Acoustic - Light Gray AP11 Light Gray Acoustic - Sesame Gray AP26 Sesame Gray Acoustic - Black AP27 Black

Circuits

CS1 Single circuit CS2 Dual circuit

Family

Beta-Calco
