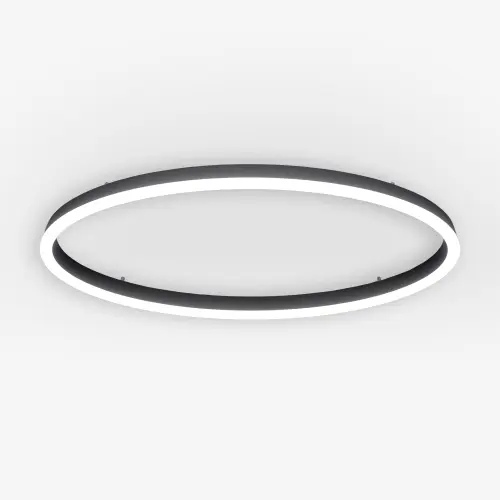

Micro Ellipse II™
Suspended

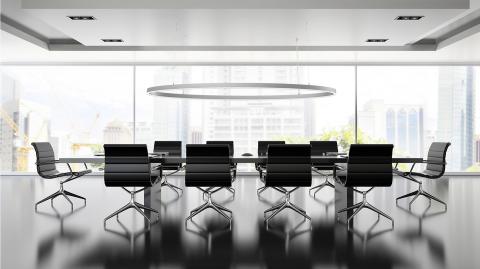

No shape is more graceful than the ellipse. Featuring an ultra-sleek design profile of 1” and length ranging from 3 feet to 7 feet, MICRO ELLIPSE is ideal for creating a lasting impression. This dynamic shape offers direct or indirect light, providing versatility for unique illuminating effects. Boasting a high-efficiency, flexible diffuser that snugly fits the frame, MICRO ELLIPSE eliminates any light leakage while ensuring a uniform and seamless diffusion of light. Whether used as a solitary statement piece or in a composition, MICRO ELLIPSE’s impact is undeniable, particularly notable for the ambient halo effect it casts with its indirect lighting. Moreover, MICRO ELLIPSE addresses acoustic needs with an optional acoustic panel for sizes up to 4 feet in length. These panels are designed to reduce echo and reverberation commonly found in modern open-plan spaces, areas with exposed concrete, open ceilings, and large windows. For a touch of whimsy and creative flair, MICRO ELLIPSE can be combined with other shapes like MICRO RING, MICRO TRIANGLE or MICRO QUAD, adding a dynamic and playful dimension to any space.

DOWNLOAD SPEC SHEET

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

POS or Power cord suspension.

Power cable

Silver braided.

Drivers

HPF electronic drivers for 120-277V (EU-240V). The driver is integral to the fixture canopy or remote mount depending on which options are selected.

Diffuser

Protruding Lens 0.08"(2.1mm).

Mechanical

Luminaires mount directly over J box (by others - North America only).

PoE

Micro Ellipse II can integrate into your data network via Power over Ethernet (PoE) connectivity.

Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Remote Mounting Of Drivers

Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation.

Sensors

Consult factory regarding sensor compatibility.

Delivered Lumens

Delivered lumens & LPW based on 3000K (min 80 CRI).

Acoustic Panels NRC Rating

0.80.

Acoustic Panels Class A Fire Rating

ASTM E-84 material.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness

12mm (0.5").

Reported L70 @25°C (77°F)

> 60,000 hrs.

Approvals

Damp Rated.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct Direct
Icon for Direct-Indirect Direct-Indirect
Icon for Declare Declare
Icon for PoE PoE
