Micro Ring SE™ Suspension

Featuring an ultra-sleek design and a range of six diameters from 2’ to 12’, MICRO RING SE is the perfect choice for crafting expansive multi-tiered circular arrangements. This dynamic ring illuminates from either its inner or outer frame, offering versatility for unique illuminating effects. Complementing its design, MICRO RING SE can be seamlessly paired with five other emission options within the MICRO RING family, creating captivating layers of light. Boasting a high-efficiency, flexible diffuser that snugly fits the frame, MICRO RING SE eliminates any light leakage while ensuring a uniform and seamless diffusion of light. With a lively and buoyant presence, MICRO RING SE makes a striking impact as a standalone piece, especially when adorned with vibrant red, green, or blue color options. Additionally, MICRO RING SE offers an option with an acoustic panel measuring up to 8’ in diameter. The inner ring emits light, enhancing the visual appeal of the acoustic panel and introducing another decorative dimension to the space. Engineered for functionality, the acoustic panels effectively absorb echo and reverberation commonly associated with open-concept spaces, exposed concrete, open ceilings, and large windows. For those seeking a whimsical style, consider combining MICRO RING with either MICRO TRIANGLE or MICRO QUAD to achieve a truly unique and enchanting aesthetic.

DOWNLOAD SPEC SHEET

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Remote Drivers

Remote, HPF electronic drivers for 120-277V (EU-240V) dimming. Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation.

Drivers

HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming. Drivers can be either Remote mount or Integral to Canopy.

Mechanical

Luminaires mount directly over J box (by others - North America only).

Acoustic Panels NRC Rating

0.08.

Acoustic Panels Class A fire Rating

ASTM E-84 material.

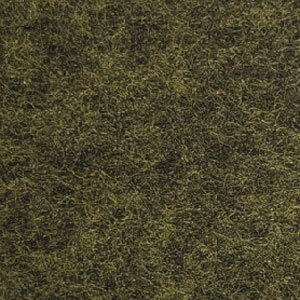

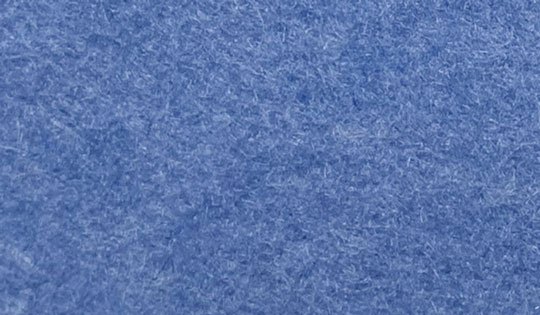

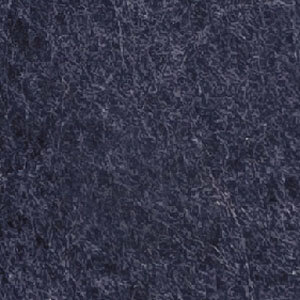

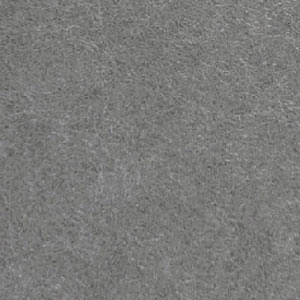

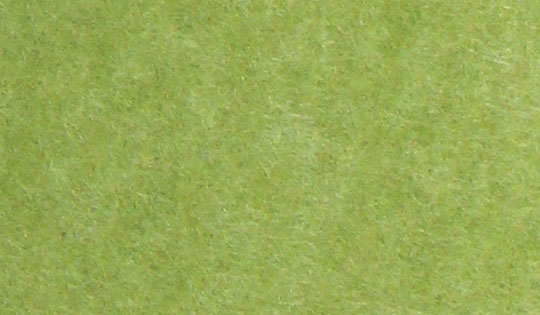

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness

12mm (0.5")

PoE

Micro RIng SE can integrate into your data network via Power over Ethernet (PoE) connectivity.

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI)

Sensors

Consult factory regarding sensor compatibility.

Reported L70 @25°C (77°F)

> 60,000 hrs.

Diffuser

Protruding Lens 0.08" (2.1mm).

Approvals

Damp Rated.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Inside Suspended Inside
Icon for Suspended Outside Suspended Outside
Icon for Acoustic Acoustic
Icon for Inside General Diffuse Inside General Diffuse
Icon for Outside General Diffuse Outside General Diffuse
Icon for Declare Declare
Icon for PoE PoE
