Rail-Lite II™

General Specification

Product Overview:

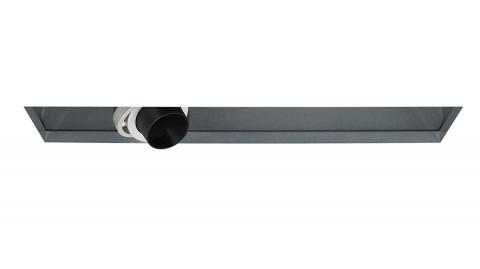

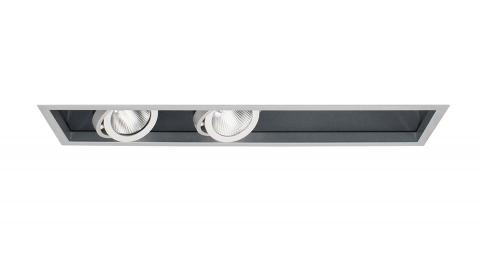

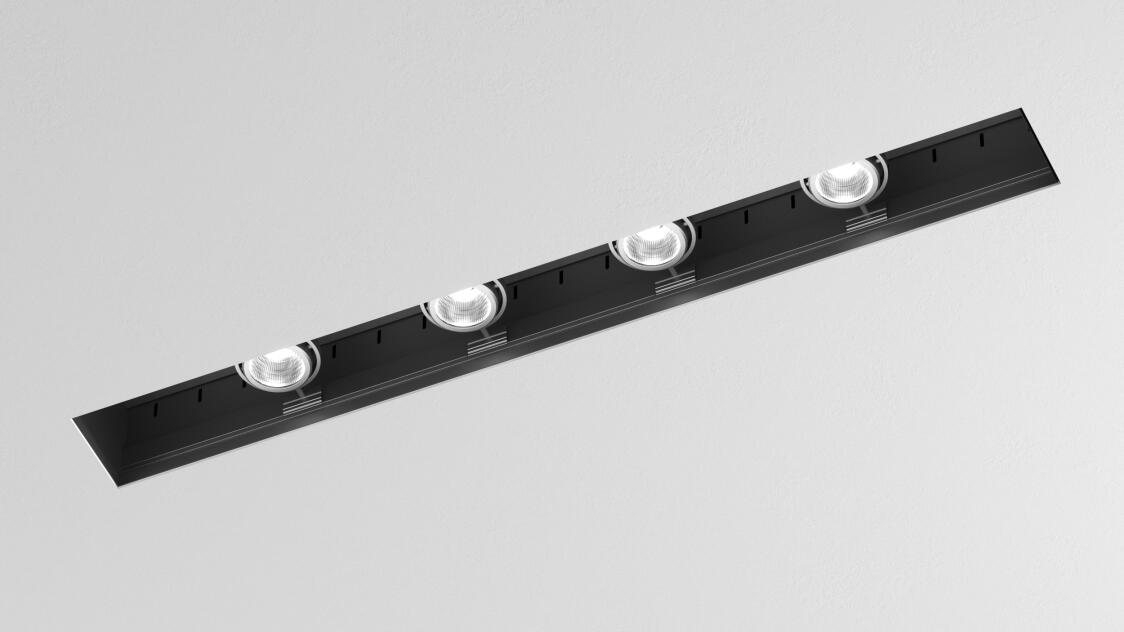

The trimless channel system blends into architecture and conceals the light sources for a seamless look. RAIL-LITE sections connect solely mechanically and can run distances as required for the space with L, T, and X connections to feed light where it is needed. RAIL-LITE is ideal as a retail solution with ultimate beam control and high color rendering. The spots can be adjusted laterally within the channel to target merchandise more accurately; glare and light spill can be controlled with Hex Louver, Snoot, and Cross Baffle accessories. A CRI of 90 displays the true color of merchandise and makes them more distinguishable.

Housing: Steel and aluminum.

Sliding: Individual heads can slide a maximum of 305mm/12" left or right of its centre point.

Bezel trim/trimless: Extruded aluminum. For installation into ceilings with a thickness range of 12mm/0.5" to 51mm/2".

LED heat sink: Extruded aluminum.

LEDs: High power, LEDs can be replaced from below.

Aperture:  133.35mm/5.25"

Reflectors: Highly reflective, specular finish.

Drivers: Constant Current driver for 120-277V (EU-240V).

PoE: Rail-Lite II can integrate into your data network via Power over Ethernet (PoE) connectivity.

Electrical: Integral junction box for branch circuit through wiring.

L70 @25oC (77oF): > 60,000 hrs.

Approvals: Damp Location (Indoor use only).



Photometric testing performed using LM79 procedures.
For all other reflectors types please consult photometric files.
Due to constant change in LEDs, please check our website for current product specifications.
Links: http://www.bridgelux.com/products/v-series#specifications

Rail-Lite II™ | Patent Pending (United States, Canada and European Patent Convention)

Mounting and Optics

Icon for Recessed Recessed
Icon for 21° 21°
Icon for 40° 40°
Icon for 64° 64°



  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • IP 20
