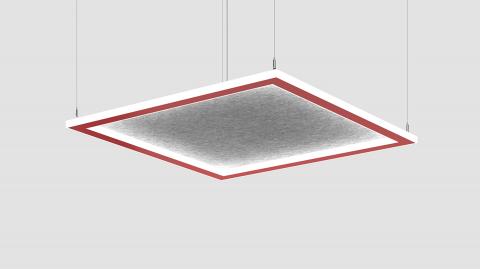

Micro Quad DE™

General Specification

Body: Aluminum.

Finish: Powder coated.

Suspension: Stainless steel cables.

Power cable: Silver braided.

Drivers: HPF electronic drivers for 120-277V (EU-240V).

Remote Mounting Of Drivers: Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.

PoE: Micro Quad DE can integrate into your data network via Power over Ethernet (PoE) connectivity.

Mechanical: Luminaires attached directly to the J box (by others - North America only).

Diffusers: Frosted acrylic.  Lens protrudes 4.8mm/0.19".

L70 @25oC: > 60,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

Acoustic Panels NRC Rating:  0.80.

Acoustic Panels Class A Fire Rating: ASTM E-84 material.

Acoustic Panels Material: 100% recycled polyester fiber (PET).

Acoustic Panels Thickness: 12mm (0.5").

Approvals: Damp Location (Indoor use only).

See Approvals
Suspended Inside/Outside General Diffuse PoE

Specify Luminaire Length

Calculate total lumens and wattage by adding the Length lumens to the Width lumens.  For example: 36" length + 48" width = 5018 + 6690 = 11708 total lumens.

Luminaire
Code Length Power (LED) Delivered lms (Length) LPW
25" 27W 3346 126
36" 40W 5018 125
48" 53W 6690 126
60" 66W 8364 126
72" 80W 10036 125
84" 93W 11708 126

Specify Width

Width
Code Width Power (LED) Delivered lms (Width) LPW
25" 27W 3346 126
36" 40W 5018 125
48" 53W 6690 126
60" 66W 8364 126
72" 80W 10036 125
84" 93W 11708 126

Specify CCT/Color (Outside)

CCT/Color (Outside)
3000K (min 80 CRI)
3500K (min 80 CRI)
4000K (min 80 CRI)
Red
Green
Blue

CCT/Color (Inside)

CCT/Color (Inside)
3000K (min 80 CRI)
3500K (min 80 CRI)
4000K (min 80 CRI)
Red
Green
Blue

Specify Suspension

Suspension
Vertical, Remote Driver
Vertical, Integral Driver

Specify Dimming (Remote Only)

Dimming
0-10V Dimming 1.0%
DALI Dimming 0.1%
DALI Dimming 1.0%
PoE

Specify Finish

Finish
Black
Silver Metallic
White

Specify Lumen & Wattage Reduction

PR0 is not available with 982410. Custom reduction percentages available upon request.

PR1 & PR2
Lumen & Wattage Reduction to approximately 25% of standard output
Lumen & Wattage Reduction to approximately 50% of standard output
Lumen & Wattage Reduction to approximately 75% of standard output

Specify Acoustic Panel Finish

Acoustic Panel Finish
AP00 Not required

Optional Low Voltage

You selected

pcs
D1 / AP00
