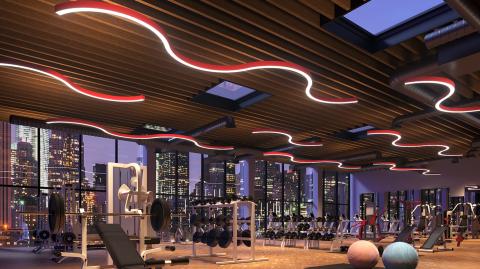

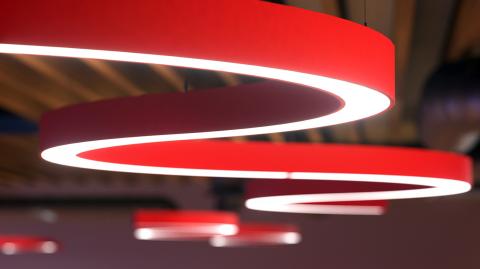

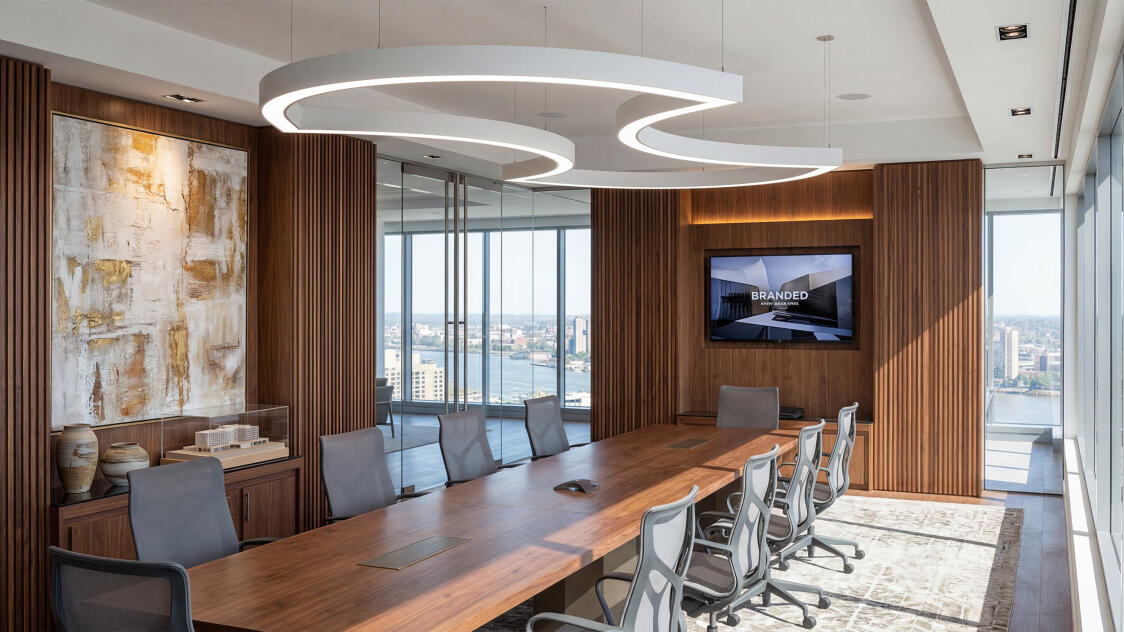

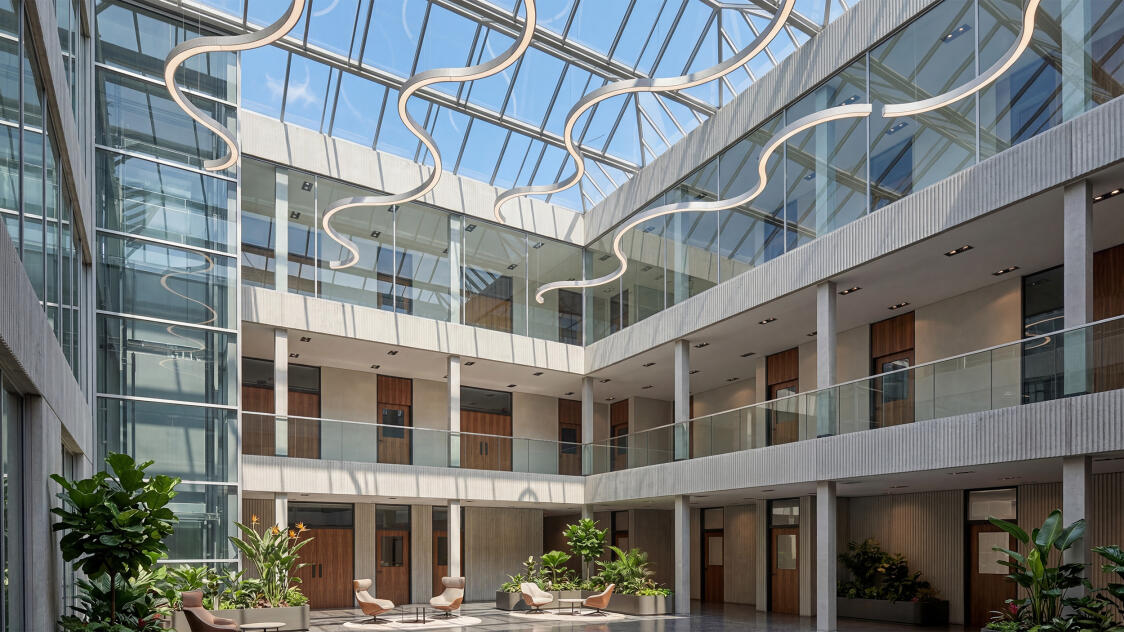

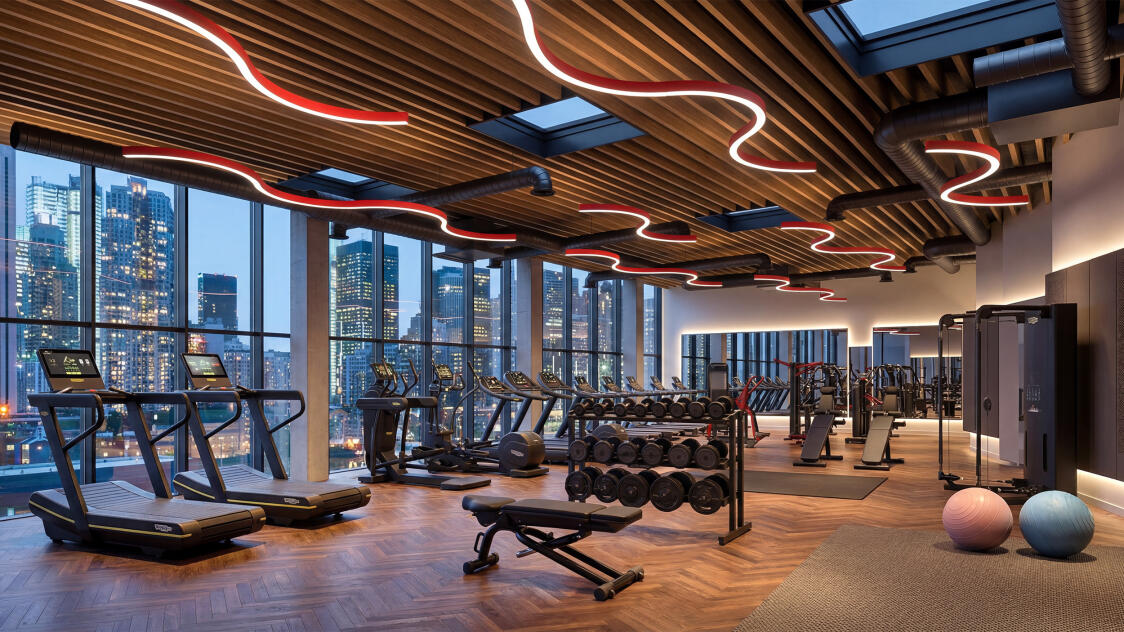

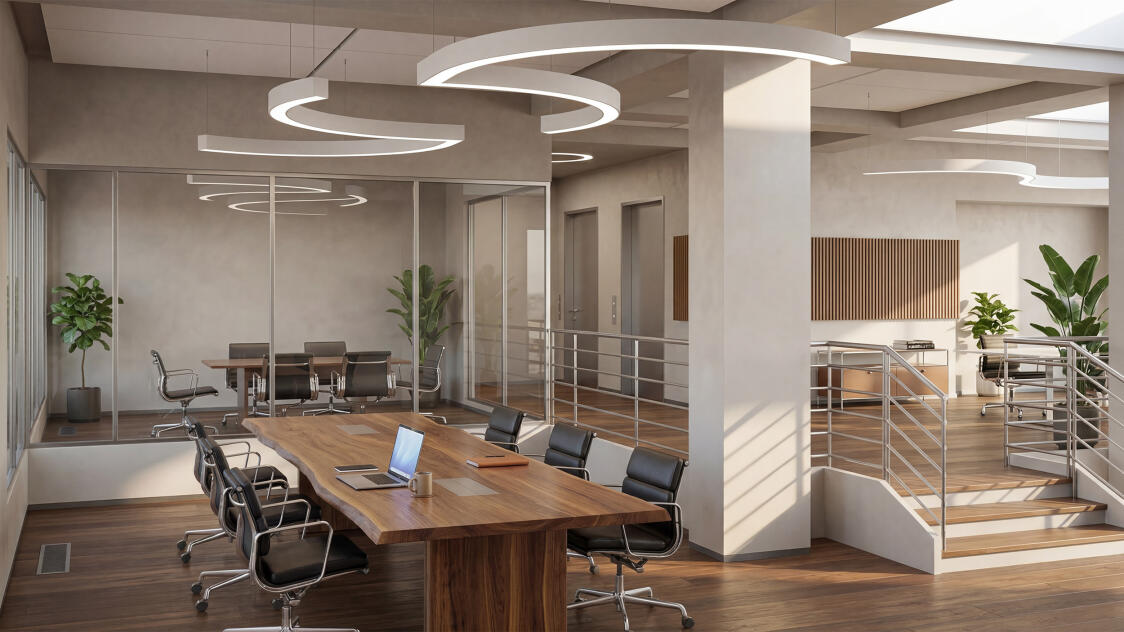

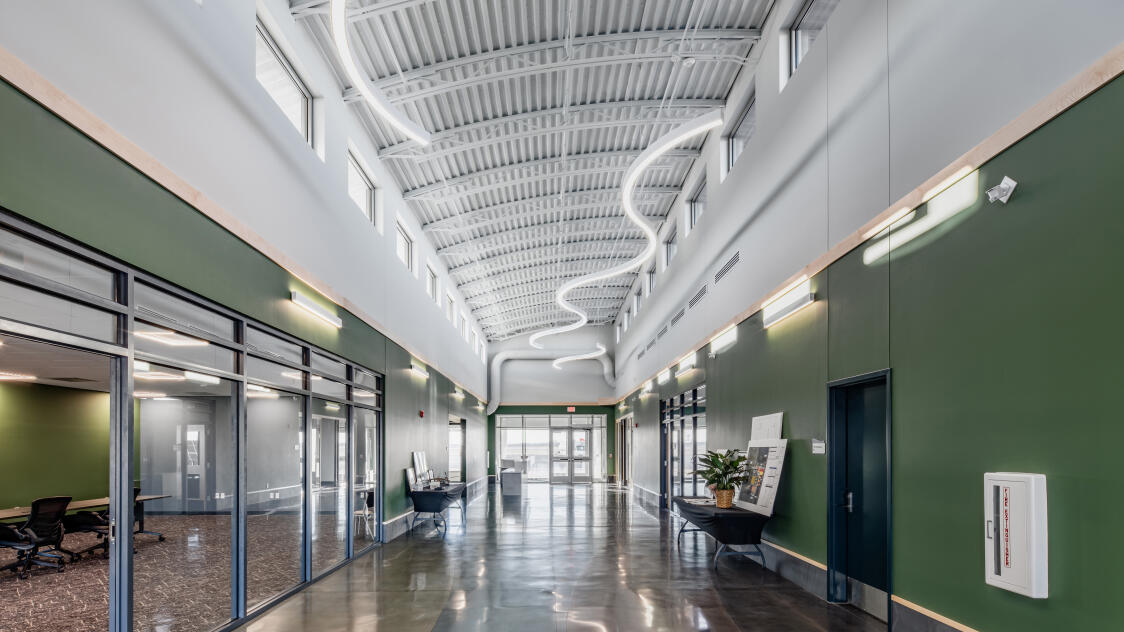

Squiggle™

WEB PIN™144

General Specification

Body and trim: Steel and aluminum.

Finish: Powder coated for standard finishes (black, Silver Metallic & white).  For wood grain finishes, the canopy will be white.

Suspension: Steel cables. Recommended minimum mounting heights from ceiling: 305mm/12" for White LEDs and 610mm/24" for Colored LEDs (Only for Direct/Indirect version).

Power cable: Silver braided.

Diffusers: Opal polycarbonate direct/Clear polycarbonate indirect.

Drivers: For white LED, integral, HPF electronic drivers for 120-277V (EU-240V).

Drivers: For RGBW, integral HPF electronic drivers/DMX interfaces for 120-277V (EU-240V). Luminaires require a DMX controller by others.

Mechanical: Luminaires mount directly over J box (by others - North America only).

Electrical: Luminaires are pre-wired with a factory installed branch circuit wiring with quick connectors. Through wiring is used to connect individual luminaires.

Integral Emergency system: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

L70 @25oC: > 50,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

Approvals: Damp Location (Indoor use only).

________________________________________

ORDERING EXAMPLE

To Create an "S Shape" order as follows:

Qty 4 - AX6/J3/K0/F2/D1/L0/C0/W0/U0 (Four curve parts)

Qty 2 - AX22/F2 (End Caps)

Qty 3 - AX23 (Connectors)

Qty 1 - AX25/F2 (Power Cord)

Each line to be ordered separately

________________________________________

See Approvals
Suspended Direct Suspended Direct Suspended Direct/Indirect Suspended Direct/Indirect RGBW RGBW Direct Direct Direct-indirect Direct-indirect

Specify Sections

Code Section Arc° Radius Length Down/Up Ratio
Curve 16 90° 406mm/16" 100/0
Curve 30 90° 762mm/30" 100/0
Curve 42 120° 1066mm/42" 100/0
Curve 48 120° 1219mm/48" 100/0
Curve 54 120° 1371mm/54" 100/0
Curve 72 90° 1828mm/72" 100/0
Straight 28 711mm/28" 100/0
Straight 36 914mm/36" 100/0
Straight 47 1194mm/47" 100/0
Straight 72 1828mm/72" 100/0
Straight 95 2413mm/95" 100/0
Curve 30 90° 762mm/30" 73/27
Curve 42 120° 1066mm/42" 66/34
Curve 48 120° 1219mm/48" 68/32
Curve 54 120° 1371mm/54" 71/29
Curve 72 90° 1828mm/72" 71/29
Straight 28 711mm/28" 70/30
Straight 36 914mm/36" 70/30
Straight 47 1194mm/47" 70/30
Straight 72 1828mm/72" 70/30
Straight 95 2413mm/95" 70/30
Cross 100/0
Corner 100/0
End Cap
Connector Single Circuit
Connector Twin Circuit
Power feed and canopy
RGBW power feed and canopy

Specify CCT/Color (Direct)

RGBW:  to calculate wattage, reference IES files.

Specify CCT/Color (Indirect)

RGBW:  to calculate wattage, reference IES files.

Specify Finish

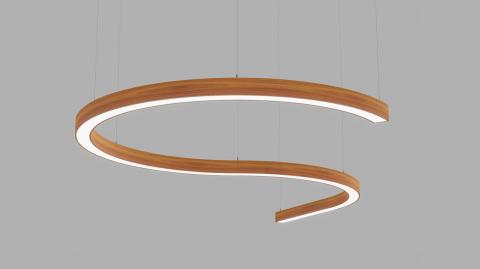

Note:  The canopy will be white for fixtures with the wood grain finishes F27 & F28.

Specify Dimming (Direct)

Note:  CB6 & CB7 not available in North America.

Specify Dimming (Indirect)

Note:  CC6 & CC7 not avilable in North America.

Specify Lumen Output

Note:  Custom reduction percentages available upon request.

Specify Emergency

Specify Controls

Specify Separate Switching

Specify Diffuser
