Tunnel™
Product Overview

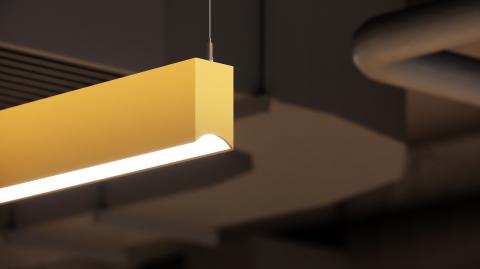

TUNNEL revives the classic functional form into a charming new style with an incurved enhancement. With this design flair comes great functionality. TUNNEL exceeds the typical levels of output and efficacy, and delivers on specification capabilities. Alternatives are provided for nearly every component, allowing designers to configure a luminaire designed precisely to the needs of the space. TUNNEL’s luxurious finishes and smooth lines create a stylish luminaire that doesn’t compromise on performance.

Features

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Diffuser

Opal acrylic.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V).

BIOS

For circadian lighting, consult factory.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

Reported L70 @25°C (77°F)

> 60,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Estimated L70 @25°C (77°F)

> 165,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Mechanical

Luminaires mount directly over J box (by others).

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Approvals

Damp Location (Indoor use only).

Design

US Design Patent Pending.

Mounting and Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct DD1 Direct DD1
Icon for Direct DD2 Direct DD2
Icon for Direct DD3 Direct DD3
Icon for Indirect Indirect
Icon for PoE PoE
Icon for Bios Bios

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20
