Micro Ring II™ Suspended

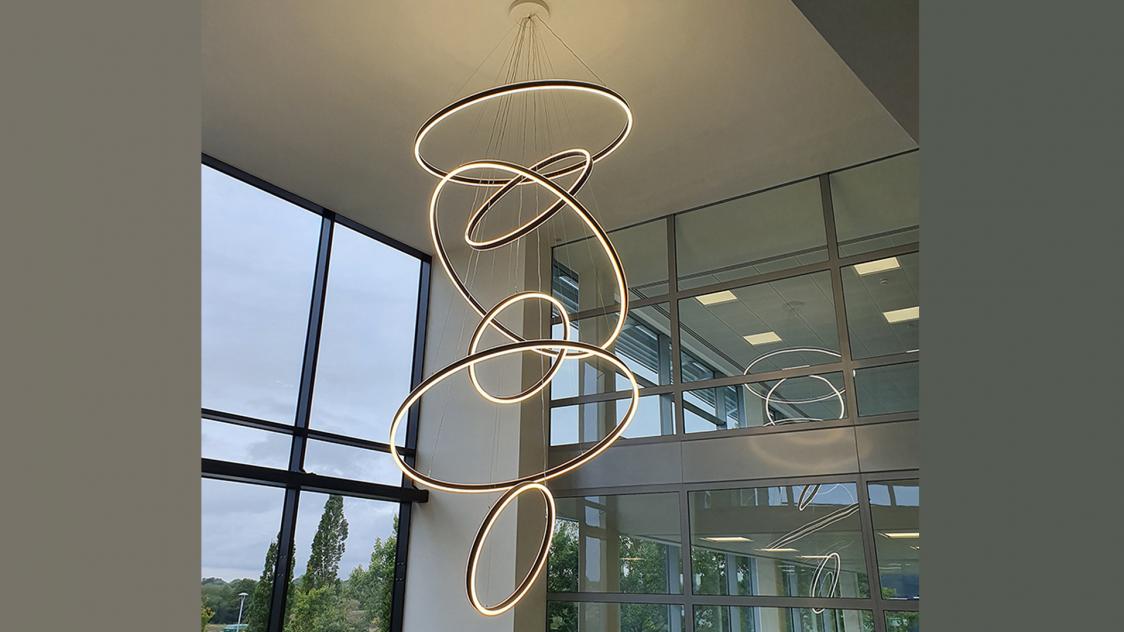

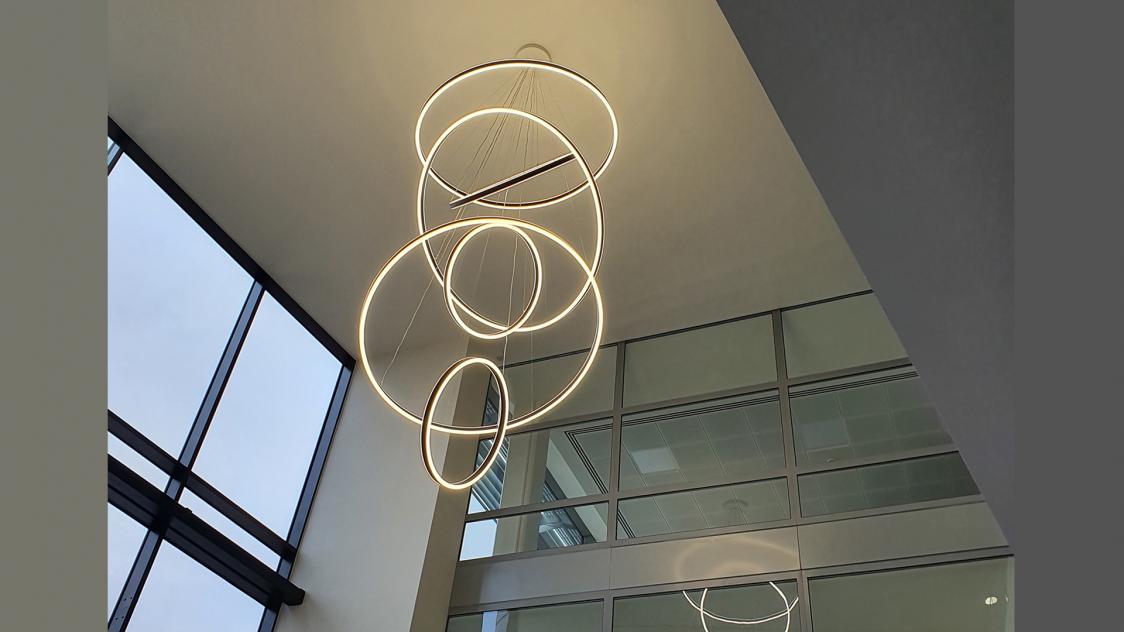

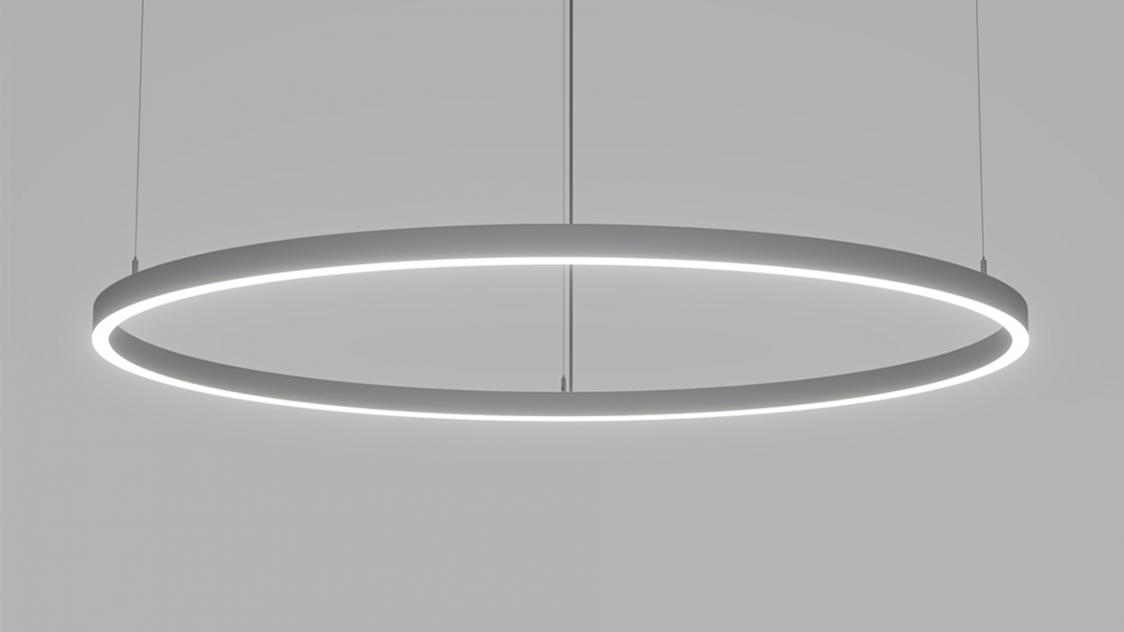

MICRO RING II sets a new performance benchmark in decorative rings, boasting a best-in-class lumen efficacy of 105 LPW.  This performance is not just about brightness but about the quality of light.  Its high-efficiency, flexible diffuser snugly fits the frame, eliminating any light leakage while ensuring a uniform and seamless diffusion of light.  The slim design of MICRO RING II, available in 8 diameters ranging from 2 feet to 12 feet, makes it ideal for crafting grand, multi-tiered circular installations. This versatile ring offers both direct and indirect lighting and is part of the larger MICRO RING family, which includes five additional light emission options for layered lighting effects. Moreover, each ring can be equipped with an acoustic panel of up to eight feet.

Expanding your options to better meet a wide range of design requirements, we now offer a lower output MICRO RING II. This new addition is designed to serve your decorative needs where subtler, more atmospheric lighting is desired without compromising on the quality and uniformity of light diffusion that the MICRO RING II is celebrated for. Ideal for creating ambient moods in intimate settings or when a less pronounced lighting effect is required, this lower output option expands the versatility of the MICRO RING collection, ensuring that there is a ring solution for every design challenge.

DOWNLOAD SPEC SHEET

Tech Specs

Body

Aluminum.

Finish

Powder coated

Power cable

Silver braided.

Diffuser

Protruding Lens 0.08" (2.1mm)

Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Drivers

Remote, HPF electronic drivers for 120-277V, 347V (EU-240V) dimming. Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation. Drivers are either remote mounted or integral to the canopy depending on the size of the fixture.

Suspension

Steel cables. Power over aircraft cable option (S6) available on direct versions only up to 2134mm/7ft diameter (North America only).

PoE

Micro Ring II can integrate into your data network via Power over Ethernet (PoE) connectivity.

Acoustic Panels NRC Rating

0.80

Acoustic Panels Class A Fire Rating

ASTM E-84 material.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness

12mm (0.5").

Mechanical

Luminaires mount directly over J box (by others - North America only).

L70 @25°C

> 60,000 hrs.

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

Approvals

Damp Rated.

Sensors

Consult factory regarding sensor compatibility.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

MRTP1P03 / CTB00
